Xen Virtualization on Linux and Solaris: RDO KIlo Set up Two KVMs Nodes (Controller+Compute) ML2&OVS&VXLAN on CentOS 7.1

Following bellow a simple two node Controller&&Network and Compute test for oncoming RDO Kilo, which was performed on Fedora 21 host with KVM/Libvirt Hypervisor (16 GB RAM, i5-4690 Intel CPU,ASUS Z97-P Board)
Two VMs (6 GB RAM, 2 VCPUS) have been setup , each one having 2 VNICs (eth0,eth1) for Controller && Compute Nodes emulation. SELINUX stays in enforcing mode. Both eth1's assigned IPs and set support VXLAN tunnel (192.168.122.127, 192.168.122.137 ). Packstack is bind to public IP of interface eth0 192.169.142.127, Compute Node is 192.169.1.137 ( view answer-file ).

****************************************
Create non-default libvirt subnet
****************************************

1. Create a new libvirt network (other than your default 192.168.122.x) via XML file:

$ cat devstackvms.xml

<network>
   <name>devstackvms</name>
   <uuid>d0e9964a-f91a-40c0-b769-a609aee41bf2</uuid>
   <forward mode='nat'>
     <nat>
       <port start='1024' end='65535'/>
     </nat>
   </forward>
   <bridge name='virbr1' stp='on' delay='0' />
   <mac address='52:54:00:60:f8:6e'/>
   <ip address='192.169.142.1' netmask='255.255.255.0'>
     <dhcp>
       <range start='192.169.142.2' end='192.169.142.254' />
     </dhcp>
   </ip>
</network>

$ virsh net-define devstackvms.xml

  Then start the network and enable "autostart"

$ virsh net-start devstackvms
$ virsh net-autostart devstackvms

Setup configuration
- Controller node: Nova, Keystone, Cinder, Glance, Neutron(ML2&OVS&VXLAN)
- Compute node: Nova (nova-compute), Neutron (openvswitch-agent)

Controller && Network Node -   ip-192-169-142-127.ip.secureserver.net
Compute Node - ip-192-169-142-137.ip.secureserver.net

******************************************
Start testing following RH instructions
******************************************
Per https://www.rdoproject.org/RDO_test_day_Kilo#How_To_Test

# yum install http://rdoproject.org/repos/openstack-kilo/rdo-testing-kilo.rpm
# yum install -y openstack-packstack

****************************************
Install also on Compute Node due to
****************************************

https://bugzilla.redhat.com/show_bug.cgi?id=1218744
https://bugzilla.redhat.com/show_bug.cgi?id=1218750

# yum install http://rdoproject.org/repos/openstack-kilo/rdo-testing-kilo.rpm

Keep SELINUX=enforcing

Package openstack-selinux-0.6.31-1.el7.noarch will be installed by prescript
puppet on all nodes of deployment

*********************
Answer-file :-
*********************
[root@ip-192-169-142-127 ~(keystone_admin)]# cat answer-fileRHTest.txt
[general]
CONFIG_SSH_KEY=/root/.ssh/id_rsa.pub
CONFIG_DEFAULT_PASSWORD=
CONFIG_MARIADB_INSTALL=y
CONFIG_GLANCE_INSTALL=y
CONFIG_CINDER_INSTALL=y
CONFIG_NOVA_INSTALL=y
CONFIG_NEUTRON_INSTALL=y
CONFIG_HORIZON_INSTALL=y
CONFIG_SWIFT_INSTALL=y
CONFIG_CEILOMETER_INSTALL=y
CONFIG_HEAT_INSTALL=n
CONFIG_CLIENT_INSTALL=y
CONFIG_NTP_SERVERS=
CONFIG_NAGIOS_INSTALL=y
EXCLUDE_SERVERS=
CONFIG_DEBUG_MODE=n
CONFIG_CONTROLLER_HOST=192.169.142.127
CONFIG_COMPUTE_HOSTS=192.169.142.137
CONFIG_NETWORK_HOSTS=192.169.142.127
CONFIG_VMWARE_BACKEND=n
CONFIG_UNSUPPORTED=n
CONFIG_VCENTER_HOST=
CONFIG_VCENTER_USER=
CONFIG_VCENTER_PASSWORD=
CONFIG_VCENTER_CLUSTER_NAME=
CONFIG_STORAGE_HOST=192.169.142.127
CONFIG_USE_EPEL=y
CONFIG_REPO=
CONFIG_RH_USER=
CONFIG_SATELLITE_URL=
CONFIG_RH_PW=
CONFIG_RH_OPTIONAL=y
CONFIG_RH_PROXY=
CONFIG_RH_PROXY_PORT=
CONFIG_RH_PROXY_USER=
CONFIG_RH_PROXY_PW=
CONFIG_SATELLITE_USER=
CONFIG_SATELLITE_PW=
CONFIG_SATELLITE_AKEY=
CONFIG_SATELLITE_CACERT=
CONFIG_SATELLITE_PROFILE=
CONFIG_SATELLITE_FLAGS=
CONFIG_SATELLITE_PROXY=
CONFIG_SATELLITE_PROXY_USER=
CONFIG_SATELLITE_PROXY_PW=
CONFIG_AMQP_BACKEND=rabbitmq
CONFIG_AMQP_HOST=192.169.142.127
CONFIG_AMQP_ENABLE_SSL=n
CONFIG_AMQP_ENABLE_AUTH=n
CONFIG_AMQP_NSS_CERTDB_PW=PW_PLACEHOLDER
CONFIG_AMQP_SSL_PORT=5671
CONFIG_AMQP_SSL_CERT_FILE=/etc/pki/tls/certs/amqp_selfcert.pem
CONFIG_AMQP_SSL_KEY_FILE=/etc/pki/tls/private/amqp_selfkey.pem
CONFIG_AMQP_SSL_SELF_SIGNED=y
CONFIG_AMQP_AUTH_USER=amqp_user
CONFIG_AMQP_AUTH_PASSWORD=PW_PLACEHOLDER
CONFIG_MARIADB_HOST=192.169.142.127
CONFIG_MARIADB_USER=root
CONFIG_MARIADB_PW=7207ae344ed04957
CONFIG_KEYSTONE_DB_PW=abcae16b785245c3
CONFIG_KEYSTONE_REGION=RegionOne
CONFIG_KEYSTONE_ADMIN_TOKEN=3ad2de159f9649afb0c342ba57e637d9
CONFIG_KEYSTONE_ADMIN_PW=7049f834927e4468
CONFIG_KEYSTONE_DEMO_PW=bf737b785cfa4398
CONFIG_KEYSTONE_TOKEN_FORMAT=UUID
CONFIG_KEYSTONE_SERVICE_NAME=keystone
CONFIG_GLANCE_DB_PW=41264fc52ffd4fe8
CONFIG_GLANCE_KS_PW=f6a9398960534797
CONFIG_GLANCE_BACKEND=file
CONFIG_CINDER_DB_PW=5ac08c6d09ba4b69
CONFIG_CINDER_KS_PW=c8cb1ecb8c2b4f6f
CONFIG_CINDER_BACKEND=lvm
CONFIG_CINDER_VOLUMES_CREATE=y
CONFIG_CINDER_VOLUMES_SIZE=10G
CONFIG_CINDER_GLUSTER_MOUNTS=
CONFIG_CINDER_NFS_MOUNTS=
CONFIG_CINDER_NETAPP_LOGIN=
CONFIG_CINDER_NETAPP_PASSWORD=
CONFIG_CINDER_NETAPP_HOSTNAME=
CONFIG_CINDER_NETAPP_SERVER_PORT=80
CONFIG_CINDER_NETAPP_STORAGE_FAMILY=ontap_cluster
CONFIG_CINDER_NETAPP_TRANSPORT_TYPE=http
CONFIG_CINDER_NETAPP_STORAGE_PROTOCOL=nfs
CONFIG_CINDER_NETAPP_SIZE_MULTIPLIER=1.0
CONFIG_CINDER_NETAPP_EXPIRY_THRES_MINUTES=720
CONFIG_CINDER_NETAPP_THRES_AVL_SIZE_PERC_START=20
CONFIG_CINDER_NETAPP_THRES_AVL_SIZE_PERC_STOP=60
CONFIG_CINDER_NETAPP_NFS_SHARES_CONFIG=
CONFIG_CINDER_NETAPP_VOLUME_LIST=
CONFIG_CINDER_NETAPP_VFILER=
CONFIG_CINDER_NETAPP_VSERVER=
CONFIG_CINDER_NETAPP_CONTROLLER_IPS=
CONFIG_CINDER_NETAPP_SA_PASSWORD=
CONFIG_CINDER_NETAPP_WEBSERVICE_PATH=/devmgr/v2
CONFIG_CINDER_NETAPP_STORAGE_POOLS=
CONFIG_NOVA_DB_PW=1e1b5aeeeaf342a8
CONFIG_NOVA_KS_PW=d9583177a2444f06
CONFIG_NOVA_SCHED_CPU_ALLOC_RATIO=16.0
CONFIG_NOVA_SCHED_RAM_ALLOC_RATIO=1.5
CONFIG_NOVA_COMPUTE_MIGRATE_PROTOCOL=tcp
CONFIG_NOVA_COMPUTE_PRIVIF=eth1
CONFIG_NOVA_NETWORK_MANAGER=nova.network.manager.FlatDHCPManager
CONFIG_NOVA_NETWORK_PUBIF=eth0
CONFIG_NOVA_NETWORK_PRIVIF=eth1
CONFIG_NOVA_NETWORK_FIXEDRANGE=192.168.32.0/22
CONFIG_NOVA_NETWORK_FLOATRANGE=10.3.4.0/22
CONFIG_NOVA_NETWORK_DEFAULTFLOATINGPOOL=nova
CONFIG_NOVA_NETWORK_AUTOASSIGNFLOATINGIP=n
CONFIG_NOVA_NETWORK_VLAN_START=100
CONFIG_NOVA_NETWORK_NUMBER=1
CONFIG_NOVA_NETWORK_SIZE=255
CONFIG_NEUTRON_KS_PW=808e36e154bd4cee
CONFIG_NEUTRON_DB_PW=0e2b927a21b44737
CONFIG_NEUTRON_L3_EXT_BRIDGE=br-ex
CONFIG_NEUTRON_L2_PLUGIN=ml2
CONFIG_NEUTRON_METADATA_PW=a965cd23ed2f4502
CONFIG_LBAAS_INSTALL=n
CONFIG_NEUTRON_METERING_AGENT_INSTALL=n
CONFIG_NEUTRON_FWAAS=n
CONFIG_NEUTRON_ML2_TYPE_DRIVERS=vxlan
CONFIG_NEUTRON_ML2_TENANT_NETWORK_TYPES=vxlan
CONFIG_NEUTRON_ML2_MECHANISM_DRIVERS=openvswitch
CONFIG_NEUTRON_ML2_FLAT_NETWORKS=*
CONFIG_NEUTRON_ML2_VLAN_RANGES=
CONFIG_NEUTRON_ML2_TUNNEL_ID_RANGES=1001:2000
CONFIG_NEUTRON_ML2_VXLAN_GROUP=239.1.1.2
CONFIG_NEUTRON_ML2_VNI_RANGES=1001:2000
CONFIG_NEUTRON_L2_AGENT=openvswitch
CONFIG_NEUTRON_LB_TENANT_NETWORK_TYPE=local
CONFIG_NEUTRON_LB_VLAN_RANGES=
CONFIG_NEUTRON_LB_INTERFACE_MAPPINGS=
CONFIG_NEUTRON_OVS_TENANT_NETWORK_TYPE=vxlan
CONFIG_NEUTRON_OVS_VLAN_RANGES=
CONFIG_NEUTRON_OVS_BRIDGE_MAPPINGS=physnet1:br-ex
CONFIG_NEUTRON_OVS_BRIDGE_IFACES=
CONFIG_NEUTRON_OVS_TUNNEL_RANGES=1001:2000
CONFIG_NEUTRON_OVS_TUNNEL_IF=eth1
CONFIG_NEUTRON_OVS_VXLAN_UDP_PORT=4789
CONFIG_HORIZON_SSL=n
CONFIG_SSL_CERT=
CONFIG_SSL_KEY=
CONFIG_SSL_CACHAIN=
CONFIG_SWIFT_KS_PW=8f75bfd461234c30
CONFIG_SWIFT_STORAGES=
CONFIG_SWIFT_STORAGE_ZONES=1
CONFIG_SWIFT_STORAGE_REPLICAS=1
CONFIG_SWIFT_STORAGE_FSTYPE=ext4
CONFIG_SWIFT_HASH=a60aacbedde7429a
CONFIG_SWIFT_STORAGE_SIZE=2G
CONFIG_PROVISION_DEMO=y
CONFIG_PROVISION_TEMPEST=n
CONFIG_PROVISION_TEMPEST_USER=
CONFIG_PROVISION_TEMPEST_USER_PW=44faa4ebc3da4459
CONFIG_PROVISION_DEMO_FLOATRANGE=172.24.4.224/28
CONFIG_PROVISION_TEMPEST_REPO_URI=https://github.com/openstack/tempest.git
CONFIG_PROVISION_TEMPEST_REPO_REVISION=master
CONFIG_PROVISION_ALL_IN_ONE_OVS_BRIDGE=n
CONFIG_HEAT_DB_PW=PW_PLACEHOLDER
CONFIG_HEAT_AUTH_ENC_KEY=fc3fb7fee61e46b0
CONFIG_HEAT_KS_PW=PW_PLACEHOLDER
CONFIG_HEAT_CLOUDWATCH_INSTALL=n
CONFIG_HEAT_USING_TRUSTS=y
CONFIG_HEAT_CFN_INSTALL=n
CONFIG_HEAT_DOMAIN=heat
CONFIG_HEAT_DOMAIN_ADMIN=heat_admin
CONFIG_HEAT_DOMAIN_PASSWORD=PW_PLACEHOLDER
CONFIG_CEILOMETER_SECRET=19ae0e7430174349
CONFIG_CEILOMETER_KS_PW=337b08d4b3a44753
CONFIG_MONGODB_HOST=192.169.142.127
CONFIG_NAGIOS_PW=02f168ee8edd44e4

****************************
RDO Kilo packstack setup
****************************

# packstack --answer-file=./answer-fileRHTest.txt

Then

# cd /etc/sysconfig/network-interfaces

[root@ip-192-169-142-127 network-scripts(keystone_admin)]# cat ifcfg-br-ex
DEVICE="br-ex"
BOOTPROTO="static"
IPADDR="192.169.142.127"
NETMASK="255.255.255.0"
DNS1="83.221.202.254"
BROADCAST="192.169.142.255"
GATEWAY="192.169.142.1"
NM_CONTROLLED="no"
DEFROUTE="yes"
IPV4_FAILURE_FATAL="yes"
IPV6INIT=no
ONBOOT="yes"
TYPE="OVSIntPort"
OVS_BRIDGE=br-ex
DEVICETYPE="ovs"

[root@ip-192-169-142-127 network-scripts(keystone_admin)]# cat ifcfg-eth0
DEVICE="eth0"
# HWADDR=00:22:15:63:E4:E2
ONBOOT="yes"
TYPE="OVSPort"
DEVICETYPE="ovs"
OVS_BRIDGE=br-ex
NM_CONTROLLED=no
IPV6INIT=no

# chkconfig network on
# systemctl stop NetworkManager
# systemctl disable NetworkManager
# service network restart

[root@ip-192-169-142-127 ~(keystone_admin)]# openstack-status
== Nova services ==
openstack-nova-api:                     active
openstack-nova-cert:                    active
openstack-nova-compute:                 inactive (disabled on boot)
openstack-nova-network:                 inactive (disabled on boot)
openstack-nova-scheduler:               active
openstack-nova-conductor:               active
== Glance services ==
openstack-glance-api:                   active
openstack-glance-registry:              active
== Keystone service ==
openstack-keystone:                     active
== Horizon service ==
openstack-dashboard:                    active
== neutron services ==
neutron-server:                         active
neutron-dhcp-agent:                     active
neutron-l3-agent:                       active
neutron-metadata-agent:                 active
neutron-openvswitch-agent:              active
== Swift services ==
openstack-swift-proxy:                  active
openstack-swift-account:                active
openstack-swift-container:              active
openstack-swift-object:                 active
== Cinder services ==
openstack-cinder-api:                   active
openstack-cinder-scheduler:             active
openstack-cinder-volume:                active
openstack-cinder-backup:                active
== Ceilometer services ==
openstack-ceilometer-api:               active
openstack-ceilometer-central:           active
openstack-ceilometer-compute:           inactive (disabled on boot)
openstack-ceilometer-collector:         active
openstack-ceilometer-alarm-notifier:    active
openstack-ceilometer-alarm-evaluator:   active
openstack-ceilometer-notification:      active
== Support services ==
mysqld:                                 inactive (disabled on boot)
libvirtd:                               active
openvswitch:                            active
dbus:                                   active
target:                                 active
rabbitmq-server:                        active
memcached:                              active
== Keystone users ==
/usr/lib/python2.7/site-packages/keystoneclient/shell.py:65: DeprecationWarning: The keystone CLI is deprecated in favor of python-openstackclient. For a Python library, continue using python-keystoneclient.
'python-keystoneclient.', DeprecationWarning)
+----------------------------------+------------+---------+----------------------+
|                id                |    name    | enabled |        email         |
+----------------------------------+------------+---------+----------------------+
| 94784e44beca4727b6fc7d6909b10bac |   admin    |   True |    root@localhost    |
| 63f60922ba754408afb9925ef08090e9 | ceilometer |   True | ceilometer@localhost |
| 5fa9249415ab4e1aa2c0c952800b6154 |   cinder   |   True |   cinder@localhost   |
| 7ca1cc3fe19e44a3b8f2ecddd58dd60a |    demo    |   True |                      |
| c621d3eccd244fb388916d72c813c78d |   glance   |   True |   glance@localhost   |
| 08095ea0a8fb45878650f135037ed109 | neutron   |   True | neutron@localhost   |
| dfddbf4a727f483f9778405610943003 |    nova    |   True |    nova@localhost    |
| fff016d5e5ef484794157046a423a5f8 |   swift    |   True |   swift@localhost    |
+----------------------------------+------------+---------+----------------------+
== Glance images ==
+--------------------------------------+-----------------+-------------+------------------+-----------+--------+
| ID                                   | Name            | Disk Format | Container Format | Size      | Status |
+--------------------------------------+-----------------+-------------+------------------+-----------+--------+
| 28a009c4-1cb4-4341-a36d-7e52366f1d94 | cirros          | qcow2       | bare             | 13200896 | active |
| e2fc8192-be04-40b2-9dbb-98cf4115c446 | Fedora 22 image | qcow2       | bare             | 221612032 | active |
+--------------------------------------+-----------------+-------------+------------------+-----------+--------+
== Nova managed services ==
+----+------------------+----------------------------------------+----------+---------+-------+----------------------------+-----------------+
| Id | Binary           | Host                                   | Zone     | Status | State | Updated_at                 | Disabled Reason |
+----+------------------+----------------------------------------+----------+---------+-------+----------------------------+-----------------+
| 1 | nova-consoleauth | ip-192-169-142-127.ip.secureserver.net | internal | enabled | up    | 2015-05-04T15:59:00.000000 | -               |
| 2 | nova-scheduler   | ip-192-169-142-127.ip.secureserver.net | internal | enabled | up    | 2015-05-04T15:59:00.000000 | -               |
| 3 | nova-conductor   | ip-192-169-142-127.ip.secureserver.net | internal | enabled | up    | 2015-05-04T15:59:01.000000 | -               |
| 4 | nova-cert        | ip-192-169-142-127.ip.secureserver.net | internal | enabled | up    | 2015-05-04T15:59:03.000000 | -               |
| 5 | nova-compute     | ip-192-169-142-137.ip.secureserver.net | nova     | enabled | up    | 2015-05-04T15:59:09.000000 | -               |
+----+------------------+----------------------------------------+----------+---------+-------+----------------------------+-----------------+
== Nova networks ==
+--------------------------------------+----------+------+
| ID                                   | Label    | Cidr |
+--------------------------------------+----------+------+
| 7cbeb299-9c3e-4316-a630-6df52473dbe8 | public   | -    |
| a4278169-8e65-43c4-a349-11d3cfd7bb27 | demo_net | -    |
+--------------------------------------+----------+------+
== Nova instance flavors ==
+----+-----------+-----------+------+-----------+------+-------+-------------+-----------+
| ID | Name      | Memory_MB | Disk | Ephemeral | Swap | VCPUs | RXTX_Factor | Is_Public |
+----+-----------+-----------+------+-----------+------+-------+-------------+-----------+
| 1 | m1.tiny   | 512       | 1    | 0         |      | 1     | 1.0         | True      |
| 2 | m1.small | 2048      | 20   | 0         |      | 1     | 1.0         | True      |
| 3 | m1.medium | 4096      | 40   | 0         |      | 2     | 1.0         | True      |
| 4 | m1.large | 8192      | 80   | 0         |      | 4     | 1.0         | True      |
| 5 | m1.xlarge | 16384     | 160 | 0         |      | 8     | 1.0         | True      |
+----+-----------+-----------+------+-----------+------+-------+-------------+-----------+
== Nova instances ==
+----+------+--------+------------+-------------+----------+
| ID | Name | Status | Task State | Power State | Networks |
+----+------+--------+------------+-------------+----------+
+----+------+--------+------------+-------------+----------+

[root@ip-192-169-142-127 ~(keystone_admin)]# nova hypervisor-list
+----+----------------------------------------+-------+---------+
| ID | Hypervisor hostname                    | State | Status |
+----+----------------------------------------+-------+---------+
| 1 | ip-192-169-142-137.ip.secureserver.net | up    | enabled |
+----+----------------------------------------+-------+---------+

[root@ip-192-169-142-127 ~(keystone_admin)]# nova hypervisor-servers ip-192-169-142-137.ip.secureserver.net
+--------------------------------------+-------------------+---------------+----------------------------------------+
| ID                                   | Name              | Hypervisor ID | Hypervisor Hostname                    |
+--------------------------------------+-------------------+---------------+----------------------------------------+
| bb44c4da-0b75-40aa-bdd2-71ba3bc90583 | instance-00000001 | 1             | ip-192-169-142-137.ip.secureserver.net |
| 3bf7fe8c-c85d-4c5d-8939-3799c20ffa9d | instance-00000002 | 1             | ip-192-169-142-137.ip.secureserver.net |
+--------------------------------------+-------------------+---------------+----------------------------------------+

***********************************************************************
[root@ip-192-169-142-127 ~(keystone_admin)]# dmesg|grep promisc
***********************************************************************
[ 856.801253] device ovs-system entered promiscuous mode
[ 856.813522] device br-int entered promiscuous mode
[ 856.857992] device br-ex entered promiscuous mode
[ 877.234725] device br-tun entered promiscuous mode
[ 1151.909670] device qg-4a5a5aa8-c0 entered promiscuous mode
[ 1152.781163] device tap3b88a4cf-ad entered promiscuous mode
[ 1157.135172] device qr-a30119cb-e2 entered promiscuous mode
[ 3393.070337] device eth0 entered promiscuous mode

*****************
Controller
*****************

[root@ip-192-169-142-127 ~(keystone_admin)]# ovs-vsctl show
8b647117-3339-4ea6-a582-3cbe6ea1bd77
    Bridge br-int
        fail_mode: secure
        Port "qr-47b87328-ec"
            tag: 2
            Interface "qr-47b87328-ec"
                type: internal
        Port br-int
            Interface br-int
                type: internal
        Port patch-tun
            Interface patch-tun
                type: patch
                options: {peer=patch-int}
        Port "tapd0360261-8f"
            tag: 2
            Interface "tapd0360261-8f"
                type: internal
        Port int-br-ex
            Interface int-br-ex
                type: patch
                options: {peer=phy-br-ex}
    Bridge br-tun
        fail_mode: secure
        Port patch-int
            Interface patch-int
                type: patch
                options: {peer=patch-tun}
        Port "vxlan-c0a87a89"
            Interface "vxlan-c0a87a89"
                type: vxlan
                options: {df_default="true", in_key=flow, local_ip="192.168.122.127", out_key=flow, remote_ip="192.168.122.137"}
        Port br-tun
            Interface br-tun
                type: internal
    Bridge br-ex
        Port phy-br-ex
            Interface phy-br-ex
                type: patch
                options: {peer=int-br-ex}
        Port br-ex
            Interface br-ex
                type: internal
        Port "eth0"
            Interface "eth0"
        Port "qg-44a9c9a4-62"
            Interface "qg-44a9c9a4-62"
                type: internal
    ovs_version: "2.3.1"

***************
Compute
***************

[root@ip-192-169-142-137 yum.repos.d]# ovs-vsctl show
958bc62e-0a5f-4177-a282-80f5f837372e
    Bridge br-tun
        fail_mode: secure
        Port patch-int
            Interface patch-int
                type: patch
                options: {peer=patch-tun}
        Port "vxlan-c0a87a7f"
            Interface "vxlan-c0a87a7f"
                type: vxlan
                options: {df_default="true", in_key=flow, local_ip="192.168.122.137", out_key=flow, remote_ip="192.168.122.127"}
        Port br-tun
            Interface br-tun
                type: internal
    Bridge br-ex
        Port br-ex
            Interface br-ex
                type: internal
        Port phy-br-ex
            Interface phy-br-ex
                type: patch
                options: {peer=int-br-ex}
    Bridge br-int
        fail_mode: secure
        Port "qvo4c7b59c1-a0"
            tag: 1
            Interface "qvo4c7b59c1-a0"
        Port int-br-ex
            Interface int-br-ex
                type: patch
                options: {peer=phy-br-ex}
        Port "qvoa24552b3-f6"
            tag: 1
            Interface "qvoa24552b3-f6"
        Port br-int
            Interface br-int
                type: internal
        Port patch-tun
            Interface patch-tun
                type: patch
                options: {peer=patch-int}
    ovs_version: "2.3.1"

********************************************************************************
Procedure to enable nested virtualization (on Intel-based machines) [ 1 ]
********************************************************************************

1. List modules and ensure KVM Kernel modules are enabled on L0:

    $ lsmod | grep -i kvm
    kvm_intel             133627 0
    kvm                   435079 1 kvm_intel

2. Show information for `kvm_intel` module:

    $ modinfo kvm_intel | grep -i nested
    parm:           nested:boolkvm                   435079 1 kvm_intel

3. Ensure nested virt is persistent across reboots by adding it as a
   config directive:

    $ cat /etc/modprobe.d/dist.conf
    options kvm-intel nested=y

4. Reboot the host.

5. Check if the Nested KVM Kernel module option is enabled:

    $ cat /sys/module/kvm_intel/parameters/nested
    Y

6. Before you boot your L1 guest (i.e. the guest hypervisor that runs
   the nested guest), expose virtualization extensions to it. The
   following exposes all the CPU features of host to your guest
   unconditionally:

[root@fedora21wks01 ~]# cat /sys/module/kvm_intel/parameters/nested
Y
[root@fedora21wks01 ~]# virsh list --all
Id    Name                           State
----------------------------------------------------
-     Centos71VM01                   shut off
-     Centos71VM02                   shut off

[root@fedora21wks01 ~]# virt-xml Centos71VM01 --edit --cpu host-passthrough,clearxml=yes
Domain 'Centos71VM01' defined successfully.

[root@fedora21wks01 ~]# virt-xml Centos71VM02 --edit --cpu host-passthrough,clearxml=yes
Domain 'Centos71VM02' defined successfully.

**************
Start VMs
**************

Ensure KVM extensions are enabled in L1 guest by running the below
   command:

$ file /dev/kvm
    /dev/kvm: character special

**********************************************************

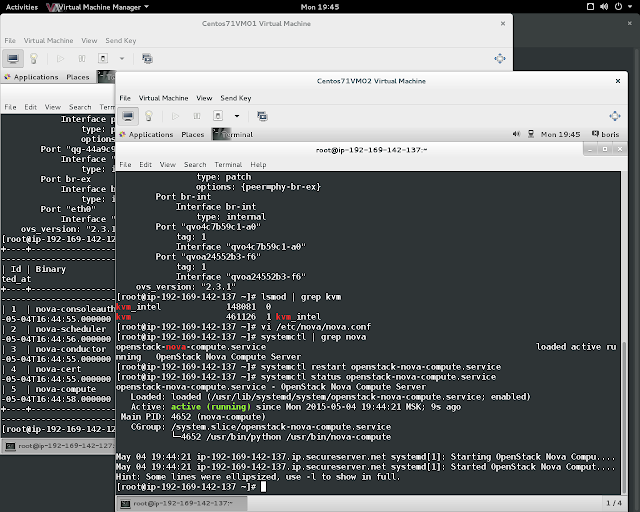

On VM running Compute update /etc/nova/nova.conf
**********************************************************
[libvirt]
# virt_type=qemu
virt_type=kvm

# systemctl restart openstack-nova-compute

Xen Virtualization on Linux and Solaris

Monday, May 04, 2015

RDO KIlo Set up Two KVMs Nodes (Controller+Compute) ML2&OVS&VXLAN on CentOS 7.1

About Me

Blog Archive
