Tuesday, May 31, 2016

Assign FIP from allocated pool when it's VM was deleted

Step 1 - Navigate here


  Step 2 (Done)




Posted by at

Sunday, May 29, 2016

Set up VM to connect Tripleo QuickStart Overcloud via Virt-manager GUI

Set up Gnome Desktop && VirtTools on Virtualization Server ( VIRTHOST ) and make remote connection to Virt-manager running on  VIRTHOST (192.168.1.75). Then create VM via virt-manager as follows using standard CentOS 7.2 ISO image , I am aware of post Connecting another vm to your tripleo-quickstart deployment at oddbits.com and manage this way deliberately.  Just wondering is it possible to get results similar to obtained by LarsKS ( via in depth knowledge virsh CLI and Libvirt features)  with Virt-manager GUI  intuitively much more affordable. I realize that speed and flexibility of approach suggested bellow are losing the aforementioned

Proceed with VM set up via Virt-manager remote GUI. Attaching "external" and
"overcloud" networks to VM and assign static IPs to eth0 and eth1 which belong
to corresponding networks.

[root@ServerCentOS72 ~]# virsh net-list
 Name                 State      Autostart     Persistent
----------------------------------------------------------
 default              active     yes           yes
 external             active     yes           yes
 overcloud            active     yes           yes







   Looks good , start install




   Installation completed.  Following step verfication availabilty connect to
   overcloud on VIRTHOST. Check static IPs on Remote Console and connect
   to dashboard of Controller





   Now connect to VMs running in overcloud



Switching eth1 to DHCP mode on RemoteConsole (following post at oddbits.com)


[root@ServerCentOS72 ~]# virsh dumpxml RemoteConsole | xmllint --xpath '//interface[source/@bridge="brovc"]' -
<interface type="network">
      <mac address="52:54:00:dd:c6:9d"/>
      <source network="overcloud" bridge="brovc"/>
      <target dev="vnet1"/>
      <model type="virtio"/>
      <alias name="net1"/>
      <address type="pci" domain="0x0000" bus="0x00" slot="0x04" function="0x0"/>

Creating port on ctlplane ( undercloud VM )


   On RemoteConsole switch eth1 to DHCP mode via NetworkManager GUI




   We are all set.  Connection to TripleO Quickstart overcloud environment
   from host which didn't initiate original deployment , i.e. didn't issue
   $ ssh-copy-id root@$VIRTHOST and is unable to issue without prompt
   $ ssh root@$VIRTHOST uname -a





Posted by at

Thursday, May 26, 2016

RDO Triple0 QuickStart && First impressions

I believe the post bellow will bring some more light on TripleO QuickStart
procedure suggested on RDO QuickStart page ( size of memory 32 GB
is a must. During minimal configuration runtime 23 GB of RAM are
required ). Following tips from Deploying OpenStack on just one hosted server

Overcloud deployed .
************************************************************************
First of all taking  look at routing tables  on undercloud VM
************************************************************************
[root@undercloud ~]# ifconfig
br-ctlplane: flags=4163  mtu 1500
        inet 192.0.2.1  netmask 255.255.255.0  broadcast 192.0.2.255
        inet6 fe80::285:8cff:feee:4c12  prefixlen 64  scopeid 0x20
        ether 00:85:8c:ee:4c:12  txqueuelen 0  (Ethernet)
        RX packets 5458173  bytes 430801023 (410.8 MiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 8562456  bytes 31493865046 (29.3 GiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

eth0: flags=4163  mtu 1500
        inet 192.168.23.28  netmask 255.255.255.0  broadcast 192.168.23.255
        inet6 fe80::285:8cff:feee:4c10  prefixlen 64  scopeid 0x20
        ether 00:85:8c:ee:4c:10  txqueuelen 1000  (Ethernet)
        RX packets 4550861  bytes 7090076105 (6.6 GiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 1597556  bytes 760511620 (725.2 MiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

eth1: flags=4163  mtu 1500
        inet6 fe80::285:8cff:feee:4c12  prefixlen 64  scopeid 0x20
        ether 00:85:8c:ee:4c:12  txqueuelen 1000  (Ethernet)
        RX packets 5459780  bytes 430920997 (410.9 MiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 8564443  bytes 31494029129 (29.3 GiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

lo: flags=73  mtu 65536
        inet 127.0.0.1  netmask 255.0.0.0
        inet6 ::1  prefixlen 128  scopeid 0x10
        loop  txqueuelen 0  (Local Loopback)
        RX packets 4361647  bytes 24858373851 (23.1 GiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 4361647  bytes 24858373851 (23.1 GiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

virbr0: flags=4099  mtu 1500
        inet 192.168.122.1  netmask 255.255.255.0  broadcast 192.168.122.255
        ether 52:54:00:39:0a:ae  txqueuelen 0  (Ethernet)
        RX packets 0  bytes 0 (0.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 0  bytes 0 (0.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

vlan10: flags=4163  mtu 1500
        inet 10.0.0.1  netmask 255.255.255.0  broadcast 10.0.0.255
        inet6 fe80::804e:69ff:fe19:844b  prefixlen 64  scopeid 0x20
        ether 82:4e:69:19:84:4b  txqueuelen 0  (Ethernet)
        RX packets 0  bytes 0 (0.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 12  bytes 816 (816.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

[root@undercloud ~]# ip route
default via 192.168.23.1 dev eth0
10.0.0.0/24 dev vlan10  proto kernel  scope link  src 10.0.0.1
192.0.2.0/24 dev br-ctlplane  proto kernel  scope link  src 192.0.2.1
192.168.23.0/24 dev eth0  proto kernel  scope link  src 192.168.23.28
192.168.122.0/24 dev virbr0  proto kernel  scope link  src 192.168.122.1

[root@undercloud ~]# ovs-vsctl show
83b044ee-44ac-4575-88b3-4951a6e9847f
    Bridge br-int
        fail_mode: secure
        Port "tapb3ad6627-29"
            tag: 1
            Interface "tapb3ad6627-29"
                type: internal
        Port int-br-ctlplane
            Interface int-br-ctlplane
                type: patch
                options: {peer=phy-br-ctlplane}
        Port br-int
            Interface br-int
                type: internal
    Bridge br-ctlplane
        Port "vlan10"
            tag: 10
            Interface "vlan10"
                type: internal
        Port phy-br-ctlplane
            Interface phy-br-ctlplane
                type: patch
                options: {peer=int-br-ctlplane}
        Port "eth1"
            Interface "eth1"
        Port br-ctlplane
            Interface br-ctlplane
                type: internal
    ovs_version: "2.5.0"

*********************************************************
Here admin credentials on overcloud controller
*********************************************************

[stack@undercloud ~]$ cat overcloudrc
export OS_NO_CACHE=True
export OS_CLOUDNAME=overcloud
export OS_AUTH_URL=http://192.0.2.10:5000/v2.0
export NOVA_VERSION=1.1
export COMPUTE_API_VERSION=1.1
export OS_USERNAME=admin
export no_proxy=,192.0.2.10,192.0.2.10
export OS_PASSWORD=pWyQpHsaXAWskcmYEq2ja4WaU
export PYTHONWARNINGS="ignore:Certificate has no, ignore:A true SSLContext object is not available"
export OS_TENANT_NAME=admin

*******************************
At the same on VIRTHOST
*******************************

[root@ServerCentOS72 ~]# virsh net-list
 Name                 State      Autostart     Persistent
----------------------------------------------------------
 default              active     yes           yes
 external             active     yes           yes
 overcloud            active     yes           yes

[root@ServerCentOS72 ~]# virsh net-dumpxml  external
<network>
  <name>external</name>
  <uuid>d585615b-c1c5-4e30-bf2d-ea247591c2b0</uuid>
  <forward mode='nat'>
    <nat>
      <port start='1024' end='65535'/>
    </nat>
  </forward>
  <bridge name='brext' stp='off' delay='0'/>
  <mac address='52:54:00:9d:b4:1d'/>
  <ip address='192.168.23.1' netmask='255.255.255.0'>
    <dhcp>
      <range start='192.168.23.10' end='192.168.23.50'/>
    </dhcp>
  </ip>
</network>

[root@ServerCentOS72 ~]# su - stack
Last login: Thu May 26 18:01:31 MSK 2016 on :0
[stack@ServerCentOS72 ~]$ virsh list
 Id    Name                           State
----------------------------------------------------
 2     undercloud                     running
 11    compute_0                      running
 12    control_0                      running

*************************************************************************
Source stackrc and run openstack-status on undercloud
Overcloud deployment is already done on undercloud VM
*************************************************************************

[root@undercloud ~]# . stackrc
[root@undercloud ~]# openstack-status

== Nova services ==
openstack-nova-api:                     active
openstack-nova-compute:                 active
openstack-nova-network:                 inactive  (disabled on boot)
openstack-nova-scheduler:               active
openstack-nova-cert:                    active
openstack-nova-conductor:               active
openstack-nova-console:                 inactive  (disabled on boot)
openstack-nova-consoleauth:             inactive  (disabled on boot)
openstack-nova-xvpvncproxy:             inactive  (disabled on boot)
== Glance services ==
openstack-glance-api:                   active
openstack-glance-registry:              active
== Keystone service ==
openstack-keystone:                     inactive  (disabled on boot)
== Horizon service ==
openstack-dashboard:                    404
== neutron services ==
neutron-server:                         active
neutron-dhcp-agent:                     active
neutron-l3-agent:                       inactive  (disabled on boot)
neutron-metadata-agent:                 inactive  (disabled on boot)
neutron-lbaas-agent:                    inactive  (disabled on boot)
neutron-openvswitch-agent:              active
neutron-metering-agent:                 inactive  (disabled on boot)
== Swift services ==
openstack-swift-proxy:                  active
openstack-swift-account:                active
openstack-swift-container:              active
openstack-swift-object:                 active
== Cinder services ==
openstack-cinder-api:                   inactive  (disabled on boot)
openstack-cinder-scheduler:             inactive  (disabled on boot)
openstack-cinder-volume:                inactive  (disabled on boot)
openstack-cinder-backup:                inactive  (disabled on boot)
== Ceilometer services ==
openstack-ceilometer-api:               active
openstack-ceilometer-central:           active
openstack-ceilometer-compute:           inactive  (disabled on boot)
openstack-ceilometer-collector:         active
openstack-ceilometer-notification:      active

== Heat services ==
openstack-heat-api:                     active
openstack-heat-api-cfn:                 active
openstack-heat-api-cloudwatch:          inactive  (disabled on boot)
openstack-heat-engine:                  active

== Sahara services ==
openstack-sahara-all:                   inactive  (disabled on boot)

== Ironic services ==
openstack-ironic-api:                   active
openstack-ironic-conductor:             active
== Support services ==
mysqld:                                 inactive  (disabled on boot)
libvirtd:                               active
openvswitch:                            active
dbus:                                   active
rabbitmq-server:                        active
memcached:                              active

====Keystone users ======

+----------------------------------+------------------+---------+-----------------------------------+
|                id                |       name       | enabled |               email               |
+----------------------------------+------------------+---------+-----------------------------------+
| c1668084d057422ab21c9180424b3e4a |      admin       |   True  |           root@localhost          |
| db938fe459c94cd09fe227a118f8be0f |       aodh       |   True  |           aodh@localhost          |
| 001a56a0872048a592db95dc9885292d |    ceilometer    |   True  |        ceilometer@localhost       |
| e038f5b685b84e6aa601b37312d84a56 |      glance      |   True  |          glance@localhost         |
| d7ddbfd73b814c13926c1ecd5ebe1bb2 |       heat       |   True  |           heat@localhost          |
| dc784308498d40568b649fbf12eaeb51 |      ironic      |   True  |          ironic@localhost         |
| 0c1f829c533240cdbec944236048ee1a | ironic-inspector |   True  | baremetal-introspection@localhost |
| ddbcb1dd885845c698f8d65f6f9ff44f |     neutron      |   True  |         neutron@localhost         |
| 987bd356963e4a5cbf2bd50c50919f9b |       nova       |   True  |           nova@localhost          |
| a5c862796ef24615afc2881e1a59f9d5 |      swift       |   True  |          swift@localhost          |
+----------------------------------+------------------+---------+-----------------------------------+

== Glance images ==
+--------------------------------------+------------------------+-------------+------------------+------------+--------+
| ID                                   | Name                   | Disk Format | Container Format | Size       | Status |
+--------------------------------------+------------------------+-------------+------------------+------------+--------+
| c734ff64-7723-43ee-a5d2-d662e1e206eb | bm-deploy-kernel       | aki         | aki              | 5157360    | active |
| f80e32c4-cfce-4dcc-993a-939800440fbf | bm-deploy-ramdisk      | ari         | ari              | 380554146  | active |
| 8616adc8-7136-4536-8562-5ed9cf129ed2 | overcloud-full         | qcow2       | bare             | 1175351296 | active |
| 73f5bfc7-99c2-46dc-8507-e5978ec61b84 | overcloud-full-initrd  | ari         | ari              | 36444678   | active |
| 0d30aa5d-869c-4716-bdd4-87685e4790ca | overcloud-full-vmlinuz | aki         | aki              | 5157360    | active |
+--------------------------------------+------------------------+-------------+------------------+------------+--------+

== Nova managed services ==
+----+----------------+------------+----------+---------+-------+----------------------------+-----------------+
| Id | Binary         | Host       | Zone     | Status  | State | Updated_at                 | Disabled Reason |
+----+----------------+------------+----------+---------+-------+----------------------------+-----------------+
| 1  | nova-cert      | undercloud | internal | enabled | up    | 2016-05-26T18:41:57.000000 | -               |
| 7  | nova-scheduler | undercloud | internal | enabled | up    | 2016-05-26T18:41:55.000000 | -               |
| 8  | nova-conductor | undercloud | internal | enabled | up    | 2016-05-26T18:41:56.000000 | -               |
| 10 | nova-compute   | undercloud | nova     | enabled | up    | 2016-05-26T18:41:54.000000 | -               |
+----+----------------+------------+----------+---------+-------+----------------------------+-----------------+

== Nova networks ==
+--------------------------------------+----------+------+
| ID                                   | Label    | Cidr |
+--------------------------------------+----------+------+
| c27b8d62-f838-4c7e-8828-64ae1503f4c4 | ctlplane | -    |
+--------------------------------------+----------+------+

== Nova instance flavors ==
+--------------------------------------+---------------+-----------+------+-----------+------+-------+-------------+-----------+
| ID                                   | Name          | Memory_MB | Disk | Ephemeral | Swap | VCPUs | RXTX_Factor | Is_Public |
+--------------------------------------+---------------+-----------+------+-----------+------+-------+-------------+-----------+
| 1320d766-7051-4639-9554-a42e7c7fd958 | control       | 4096      | 40   | 0         |      | 1     | 1.0         | True      |
| 1b0ad845-6273-437f-8573-e4922a256ec7 | block-storage | 4096      | 40   | 0         |      | 1     | 1.0         | True      |
| 27a0e9ee-c909-4d7d-8e86-1eb2e61fb1cb | oooq_control  | 8192      | 49   | 0         |      | 1     | 1.0         | True      |
| 40057aa6-5e8b-4d4b-85d4-f21418d01b5d | baremetal     | 4096      | 40   | 0         |      | 1     | 1.0         | True      |
| 5750def3-dc08-43dd-b194-02d4ea73b8d7 | compute       | 4096      | 40   | 0         |      | 1     | 1.0         | True      |
| 769969da-f429-4f5f-84c9-6456f39539f8 | ceph-storage  | 4096      | 40   | 0         |      | 1     | 1.0         | True      |
| 9c1622bc-ee0f-4dfa-a988-1e89cad47015 | oooq_compute  | 8192      | 49   | 0         |      | 1     | 1.0         | True      |
| a2e5a055-3334-4080-86f9-4887931aee22 | swift-storage | 4096      | 40   | 0         |      | 1     | 1.0         | True      |
| b05b3c15-7928-4f59-9f8d-7d3947e19bee | oooq_ceph     | 8192      | 49   | 0         |      | 1     | 1.0         | True      |
+--------------------------------------+---------------+-----------+------+-----------+------+-------+-------------+-----------+

== Nova instances ==
+--------------------------------------+-------------------------+----------------------------------+--------+------------+-------------+---------------------+
| ID                                   | Name                    | Tenant ID                        | Status | Task State | Power State | Networks            |
+--------------------------------------+-------------------------+----------------------------------+--------+------------+-------------+---------------------+
| 88f841ac-1ca0-4339-ba8a-c2895c0dc57c | overcloud-controller-0  | ccf0e5fdbebb4335ad7875ec821af91d | ACTIVE | -          | Running     | ctlplane=192.0.2.13 |
| f12a1086-7e23-4acb-80a7-8b2efe1e4ef2 | overcloud-novacompute-0 | ccf0e5fdbebb4335ad7875ec821af91d | ACTIVE | -          | Running     | ctlplane=192.0.2.12 |
+--------------------------------------+-------------------------+----------------------------------+--------+------------+-------------+---------------------+

******************************************************
Neutron reports on undercloud VM
******************************************************

[root@undercloud ~]# neutron net-list
+--------------------------------------+----------+------------------------------------------+
| id                                   | name     | subnets                                  |
+--------------------------------------+----------+------------------------------------------+
| c27b8d62-f838-4c7e-8828-64ae1503f4c4 | ctlplane | 631022c3-cfc5-4353-b038-1592cceea57e     |
|                                      |          | 192.0.2.0/24                             |
+--------------------------------------+----------+------------------------------------------+

[root@undercloud ~]# neutron net-show ctlplane
+---------------------------+--------------------------------------+
| Field                     | Value                                |
+---------------------------+--------------------------------------+
| admin_state_up            | True                                 |
| availability_zone_hints   |                                      |
| availability_zones        | nova                                 |
| created_at                | 2016-05-26T11:32:18                  |
| description               |                                      |
| id                        | c27b8d62-f838-4c7e-8828-64ae1503f4c4 |
| ipv4_address_scope        |                                      |
| ipv6_address_scope        |                                      |
| mtu                       | 1500                                 |
| name                      | ctlplane                             |
| provider:network_type     | flat                                 |
| provider:physical_network | ctlplane                             |
| provider:segmentation_id  |                                      |
| router:external           | False                                |
| shared                    | False                                |
| status                    | ACTIVE                               |
| subnets                   | 631022c3-cfc5-4353-b038-1592cceea57e |
| tags                      |                                      |
| tenant_id                 | ccf0e5fdbebb4335ad7875ec821af91d     |
| updated_at                | 2016-05-26T11:32:18                  |
+---------------------------+--------------------------------------+

[root@undercloud ~]# neutron subnet-list
+------------------------------------+------+--------------+------------------------------------+
| id                                 | name | cidr         | allocation_pools                   |
+------------------------------------+------+--------------+------------------------------------+
| 631022c3-cfc5-4353-b038-1592cceea5 |      | 192.0.2.0/24 | {"start": "192.0.2.5", "end":      |
| 7e                                 |      |              | "192.0.2.30"}                      |
+------------------------------------+------+--------------+------------------------------------+

[root@undercloud ~]# neutron subnet-show 631022c3-cfc5-4353-b038-1592cceea57e
+-------------------+---------------------------------------------------------------+
| Field             | Value                                                         |
+-------------------+---------------------------------------------------------------+
| allocation_pools  | {"start": "192.0.2.5", "end": "192.0.2.30"}                   |
| cidr              | 192.0.2.0/24                                                  |
| created_at        | 2016-05-26T11:32:18                                           |
| description       |                                                               |
| dns_nameservers   |                                                               |
| enable_dhcp       | True                                                          |
| gateway_ip        | 192.0.2.1                                                     |
| host_routes       | {"destination": "169.254.169.254/32", "nexthop": "192.0.2.1"} |
| id                | 631022c3-cfc5-4353-b038-1592cceea57e                          |
| ip_version        | 4                                                             |
| ipv6_address_mode |                                                               |
| ipv6_ra_mode      |                                                               |
| name              |                                                               |
| network_id        | c27b8d62-f838-4c7e-8828-64ae1503f4c4                          |
| subnetpool_id     |                                                               |
| tenant_id         | ccf0e5fdbebb4335ad7875ec821af91d                              |
| updated_at        | 2016-05-26T11:32:18                                           |
+-------------------+---------------------------------------------------------------+

**********************************************
When overcloud deployment is done
**********************************************
[stack@undercloud ~]$ heat stack-list
+--------------------------------------+------------+-----------------+---------------------+--------------+
| id                                   | stack_name | stack_status    | creation_time       | updated_time |
+--------------------------------------+------------+-----------------+---------------------+--------------+
| 7002392b-cd2d-439f-b3cd-024979f153a5 | overcloud  | CREATE_COMPLETE | 2016-05-26T13:35:17 | None         |
+--------------------------------------+------------+-----------------+---------------------+--------------+

[stack@undercloud ~]$ nova list
+--------------------------------------+-------------------------+--------+------------+-------------+---------------------+
| ID                                   | Name                    | Status | Task State | Power State | Networks            |
+--------------------------------------+-------------------------+--------+------------+-------------+---------------------+
| 88f841ac-1ca0-4339-ba8a-c2895c0dc57c | overcloud-controller-0  | ACTIVE | -          | Running     | ctlplane=192.0.2.13 |
| f12a1086-7e23-4acb-80a7-8b2efe1e4ef2 | overcloud-novacompute-0 | ACTIVE | -          | Running     | ctlplane=192.0.2.12 |
+--------------------------------------+-------------------------+--------+------------+-------------+---------------------+

*******************************************
Log into overcloud controller
*******************************************

[stack@undercloud ~]$ ssh heat-admin@192.0.2.13
Last login: Thu May 26 16:52:28 2016 from gateway
[heat-admin@overcloud-controller-0 ~]$ sudo su -
Last login: Thu May 26 15:42:23 UTC 2016 on pts/0
[root@overcloud-controller-0 ~]# ls
keystonerc_admin  oskey01.pem
[root@overcloud-controller-0 ~]# . keystonerc_admin




[root@overcloud-controller-0 ~]# ifconfig

br-ex: flags=4163  mtu 1500
        inet 192.0.2.13  netmask 255.255.255.0  broadcast 192.0.2.255
        inet6 fe80::2f7:7fff:fe1a:ca59  prefixlen 64  scopeid 0x20
        ether 00:f7:7f:1a:ca:59  txqueuelen 0  (Ethernet)
        RX packets 689651  bytes 1362839189 (1.2 GiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 2346450  bytes 3243444405 (3.0 GiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

eth0: flags=4163  mtu 1500
        inet6 fe80::2f7:7fff:fe1a:ca59  prefixlen 64  scopeid 0x20
        ether 00:f7:7f:1a:ca:59  txqueuelen 1000  (Ethernet)
        RX packets 2783352  bytes 4201989574 (3.9 GiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 2876264  bytes 3280863833 (3.0 GiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

lo: flags=73  mtu 65536
        inet 127.0.0.1  netmask 255.0.0.0
        inet6 ::1  prefixlen 128  scopeid 0x10
        loop  txqueuelen 0  (Local Loopback)
        RX packets 2962545  bytes 8418607495 (7.8 GiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 2962545  bytes 8418607495 (7.8 GiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

[root@overcloud-controller-0 ~]# ovs-vsctl show
cc8be4fb-f96f-4679-b85d-d0afc7dd7f72
    Bridge br-int
        fail_mode: secure
        Port "tapb86d48f2-45"
            tag: 2
            Interface "tapb86d48f2-45"
                type: internal
        Port "tapa4fa2a9d-a4"
            tag: 3
            Interface "tapa4fa2a9d-a4"
                type: internal
        Port "qr-eb92ffa9-da"
            tag: 2
            Interface "qr-eb92ffa9-da"
                type: internal
        Port "qr-e8146f9f-51"
            tag: 3
            Interface "qr-e8146f9f-51"
                type: internal
        Port br-int
            Interface br-int
                type: internal
        Port patch-tun
            Interface patch-tun
                type: patch
                options: {peer=patch-int}
        Port int-br-ex
            Interface int-br-ex
                type: patch
                options: {peer=phy-br-ex}
    Bridge br-tun
        fail_mode: secure
        Port "vxlan-c000020c"
            Interface "vxlan-c000020c"
                type: vxlan
                options: {df_default="true", in_key=flow, local_ip="192.0.2.13", out_key=flow, remote_ip="192.0.2.12"}
        Port patch-int
            Interface patch-int
                type: patch
                options: {peer=patch-tun}
        Port br-tun
            Interface br-tun
                type: internal
    Bridge br-ex
        Port phy-br-ex
            Interface phy-br-ex
                type: patch
                options: {peer=int-br-ex}
        Port "qg-df23145d-8f"
            Interface "qg-df23145d-8f"
                type: internal
        Port "qg-53315134-1d"
            Interface "qg-53315134-1d"
                type: internal
        Port br-ex
            Interface br-ex
                type: internal
        Port "eth0"
            Interface "eth0"
    ovs_version: "2.5.0"

**************************************
Routing table on overcloud controller
*************************************

[root@overcloud-controller-0 ~]# ip route
default via 192.0.2.1 dev br-ex  proto static
169.254.169.254 via 192.0.2.1 dev br-ex  proto static
192.0.2.0/24 dev br-ex  proto kernel  scope link  src 192.0.2.13



   Network topology


  [root@overcloud-controller-0 ~]# neutron net-list
+--------------------------------------+--------------+----------------------------------------+
| id                                   | name         | subnets                                |
+--------------------------------------+--------------+----------------------------------------+
| 1dad601c-c865-41d8-94cb-efc634c1fc83 | public       | 12787d8b-1b72-402d-9b93-2821f0a18b7b   |
|                                      |              | 192.0.2.0/24                           |
| 0086836e-2dc3-4d40-a2e2-21f222b159f4 | demo_network | dcc40bfc-9293-47bb-8788-d4b5f090d076   |
|                                      |              | 90.0.0.0/24                            |
| 59168b6e-adca-4ec6-982a-f94a0eb770c8 | private      | ede9bbc2-5099-4d9f-91af-2fd4387d52be   |
|                                      |              | 50.0.0.0/24                            |
+--------------------------------------+--------------+----------------------------------------+

[root@overcloud-controller-0 ~]# nova service-list
+----+------------------+-------------------------------------+----------+---------+-------+----------------------------+-----------------+
| Id | Binary           | Host                                | Zone     | Status  | State | Updated_at                 | Disabled Reason |
+----+------------------+-------------------------------------+----------+---------+-------+----------------------------+-----------------+
| 1  | nova-cert        | overcloud-controller-0              | internal | enabled | up    | 2016-05-26T17:09:20.000000 | -               |
| 2  | nova-consoleauth | overcloud-controller-0              | internal | enabled | up    | 2016-05-26T17:09:20.000000 | -               |
| 5  | nova-scheduler   | overcloud-controller-0              | internal | enabled | up    | 2016-05-26T17:09:22.000000 | -               |
| 6  | nova-conductor   | overcloud-controller-0              | internal | enabled | up    | 2016-05-26T17:09:24.000000 | -               |
| 7  | nova-compute     | overcloud-novacompute-0.localdomain | nova     | enabled | up    | 2016-05-26T17:09:19.000000 | -               |
+----+------------------+-------------------------------------+----------+---------+-------+----------------------------+-----------------+

 Running VMs


   *************************************************************************
   Verfication outbound connectivity. Connecting via floating IPs belong
   192.0.2.0/24 to VMs running in overcloud from undercloud VM
   *************************************************************************




   *********************************************************

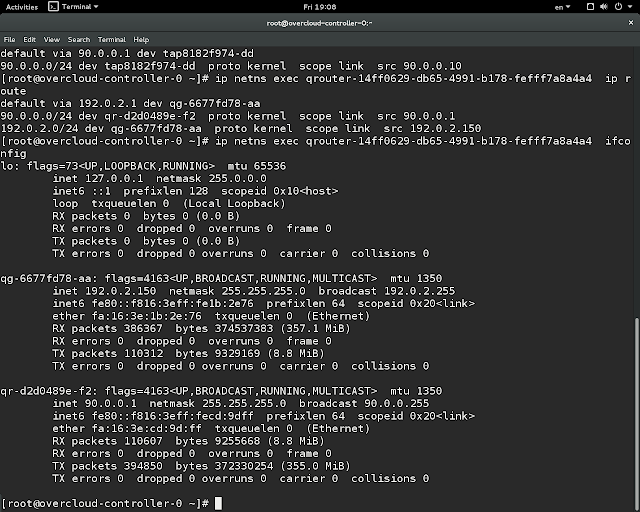

   `ip netns` on overcloud controller
  **********************************************************



 It won't work on 16 GB even minimal configuration.
 Server memory allocation for minimal virtual environment



Posted by at

Monday, May 23, 2016

Backport upstream commits to stable RDO Mitaka release && Deployments with Keystone API V3

Posting bellow is written  with intend to avoid waiting until "koji" build will appear in updates repo of stable RDO Mitaka release, what might take a couple of months or so. Actually, it doesn't require knowledge how to write properly source RH's rpm file. It just needs picking up raw content of git commits from upstream git repo converting them into patches and rebuild required src.rpm(s) with patch(es) needed. There is also not commonly known command `rpm -qf` which is very useful when you need to detect which rpm has installed particular file. Just to know which src.rpm should be downloaded for git commit referencing
say "cinder.rb"

[root@ServerCentOS72 /]# find . -name cinder.rb -print
find: ‘./run/user/1000/gvfs’: Permission denied
./usr/share/openstack-puppet/modules/cinder/lib/puppet/provider/cinder.rb

[root@ServerCentOS72 /]# rpm -qf /usr/share/openstack-puppet/modules/cinder/lib/puppet/provider/cinder.rb
openstack-puppet-modules-8.0.4-2.el7.centos.noarch

*******************************
Thus download from
*******************************

1. https://cbs.centos.org/koji/buildinfo?buildID=10895
openstack-packstack-8.0.0-1.el7.src.rpm
2. https://cbs.centos.org/koji/buildinfo?buildID=10859
openstack-puppet-modules-8.0.4-1.el7.src.rpm


[boris@ServerCentOS72 Downloads]$ ls -l
total 3116
-rw-rw-r--. 1 boris boris  170107 May 21 21:26 openstack-packstack-8.0.0-1.el7.src.rpm
-rw-rw-r--. 1 boris boris 3015046 May 21 18:33 openstack-puppet-modules-8.0.4-1.el7.src.rpm

****************
Then run :-
****************

$ rpm -iv openstack-packstack-8.0.0-1.el7.src.rpm
$ rpm -iv  openstack-puppet-modules-8.0.4-1.el7.src.rpm
$ cd ../rpmbuild

In folder ~boris/rpmbuild/SOURCES
create to patch files :-

0001-Use-versionless-auth_url-for-cinder.patch
0001-Enable-keystone-v3-support-for-cinder_type.patch

********************************************************************
In second patch file insert "cinder" in path to *.rb files
********************************************************************

diff --git a/cinder/lib/puppet/provider/cinder_type/openstack.rb b/cinder/lib/puppet/provider/cinder_type/openstack.rb
index feaea49..9aa31c5 100644
--- a/cinder/lib/puppet/provider/cinder_type/openstack.rb
+++ b/cinder/lib/puppet/provider/cinder_type/openstack.rb
@@ -32,6 +32,10 @@ class Puppet::Provider::Cinder < Puppet::Provider::Openstack

. . . . .

diff --git a/cinder/lib/puppet/provider/cinder_type/openstack.rb b/cinder/lib/puppet/provider/cinder_type/openstack.rb
index feaea49..9aa31c5 100644
--- a/cinder/lib/puppet/provider/cinder_type/openstack.rb
+++ b/cinder/lib/puppet/provider/cinder_type/openstack.rb
@@ -7,7 +7,7 @@ Puppet::Type.type(:cinder_type).provide(

. . . . . .

diff --git a/cinder/spec/unit/provider/cinder_spec.rb b/cinder/spec/unit/provider/cinder_spec.rb
index cfc8850..246ae58 100644
--- a/cinder/spec/unit/provider/cinder_spec.rb
+++ b/cinder/spec/unit/provider/cinder_spec.rb
@@ -24,10 +24,12 @@ describe Puppet::Provider::Cinder do


Finally SOURES folder would  look like :-


  **********************
  Next step is :-
  **********************

  $ cd ../SPECS

  and update *.spec files , so that they would understand that patches placed
  into SOURCES folder have to be applied to corresponding *.tar.gz archives
  before building phase itself.

*****************************************
First openstack-packstack.spec :-
*****************************************

Name:           openstack-packstack
Version:        8.0.0
Release:        2%{?milestone}%{?dist} <== increase 1 to 2
Summary:        Openstack Install Utility

Group:          Applications/System
License:        ASL 2.0 and GPLv2
URL:            https://github.com/openstack/packstack
Source0:        http://tarballs.openstack.org/packstack/packstack-%{upstream_version}.tar.gz
Patch0:         0001-Use-versionless-auth_url-for-cinder.patch  <=== Add line
. . . . . .

%prep
%setup -n packstack-%{upstream_version}
%patch0 -p1  <==  Add line

:wq

*****************************************
Second openstack-puppet-modules.spec
*****************************************
Name:           openstack-puppet-modules
Epoch:          1
Version:        8.0.4
Release:        2%{?milestone}%{?dist}  <===  increase 1 to 2
Summary:        Puppet modules used to deploy OpenStack
License:        ASL 2.0 and GPLv2 and GPLv3

URL:         https://github.com/redhat-openstack

Source0:    https://github.com/redhat-openstack/%{name}/archive/%{upstream_version}.tar.gz
Patch0:    0001-Enable-keystone-v3-support-for-cinder_type.patch <== Add line

. . . . .

%prep
%setup -q -n %{name}-%{?upstream_version}
%patch0 -p1  <== Add line

:wq

******************************************
Attempt rpmbuild for each spec file
******************************************

$ rpmbuild -bb openstack-packstack.spec
$ rpmbuild -bb openstack-puppet-modules.spec

If particular build is missing some packages it will report their's names to screen
This packages could be usually installed via yum, otherwise you have a problem
with local build.
If each build output finishes with message like
Wrote: /home/boris/rpmbuild/RPMS/noarch/openstack-puppet-modules-8.0.4-2.el7.centos.noarch.rpm
Executing(%clean): /bin/sh -e /var/tmp/rpm-tmp.wX6p3q
+ umask 022
+ cd /home/boris/rpmbuild/BUILD
+ cd openstack-puppet-modules-8.0.4
+ /usr/bin/rm -rf /home/boris/rpmbuild/BUILDROOT/openstack-puppet-modules-8.0.4-2.el7.centos.x86_64
+ exit 0

Everything is going fine. In particular case results will be written
to ../RPMS/noarch


Then

$ cd ../RPMS/noarch

and create installation script

[boris@ServerCentOS72 SPECS]$ cd ../RPMS/noarch
[boris@ServerCentOS72 noarch]$ ls -l
total 3428
-rwxrwxr-x. 1 boris boris     239 May 21 21:40 install
-rw-rw-r--. 1 boris boris  247312 May 21 21:34 openstack-packstack-8.0.0-2.el7.centos.noarch.rpm
-rw-rw-r--. 1 boris boris   17376 May 21 21:34 openstack-packstack-doc-8.0.0-2.el7.centos.noarch.rpm
-rw-rw-r--. 1 boris boris   16792 May 21 21:34 openstack-packstack-puppet-8.0.0-2.el7.centos.noarch.rpm
-rw-rw-r--. 1 boris boris 3212844 May 21 21:38 openstack-puppet-modules-8.0.4-2.el7.centos.noarch.rpm

[boris@ServerCentOS72 noarch]$ cat install
sudo yum install openstack-packstack-8.0.0-2.el7.centos.noarch.rpm \
openstack-packstack-doc-8.0.0-2.el7.centos.noarch.rpm \
openstack-packstack-puppet-8.0.0-2.el7.centos.noarch.rpm \
openstack-puppet-modules-8.0.4-2.el7.centos.noarch.rpm

****************************
Run install :-
****************************
[boris@ServerCentOS72 noarch]$ ./install

Due to increased  release (1=>2) old rpms should be replaced by just been built

[root@ServerCentOS72 ~]# rpm -qa  \*openstack-packstack\*
openstack-packstack-doc-8.0.0-2.el7.centos.noarch
openstack-packstack-puppet-8.0.0-2.el7.centos.noarch
openstack-packstack-8.0.0-2.el7.centos.noarch

[root@ServerCentOS72 ~]# rpm -qa \*openstack-puppet-modules\*
openstack-puppet-modules-8.0.4-2.el7.centos.noarch

****************************************************************
Since that point following entry in your answer-file :-
****************************************************************

# Identity service API version string. ['v2.0', 'v3']
CONFIG_KEYSTONE_API_VERSION=v3

won't cause cinder puppet to crash packstack run, no matter of kind of your deployment

References
1. https://bugzilla.redhat.com/show_bug.cgi?id=1330289
Posted by at

Friday, May 20, 2016

Java EE Servers as Nova-Docker Containers && RDO Mitaka External vlan networks

  Nova-Docker driver is installed on Compute node which is supposed to run two Java EE Servers as light weight Nova-Docker Containers (instances) having floating IPs on two different external vlan enabled subnets (10.10.10.0/24; 10.10.50.0/24).  General Setup RDO Mitaka ML2&OVS&VLAN 3 Nodes.  VLAN tenant's segregation for RDO lansdcape was selected to avoid DVR configuration Controller && Compute Cluster.
Details here Setup Docker Hypervisor on Multi Node DVR Cluster RDO Mitaka
  Thus Controller/Network RDO Mitaka Node has to have external networks of VLAN type with predefined vlan tags. Straight forward packstack deployment doesn't  allow to achieve desired network configuration. External network provider of vlan type appears to be required.
   Also I have to notice that Docker Hypervisor running on Compute Node
requires all deployment nodes set SELINUX to PERMISSIVE MODE.

   In particular case, office networks 10.10.10.0/24 is vlan tagged (157), 10.10.50.0/24 is vlan tagged (172) already exists when RDO install is running.

192.169.142.127 Controller/Network
192.169.142.147 Storage Node
192.169.142.137 Compute Node
192.169.142.45   WKS ( 3VNICs eth0 - 192.169.142.45 , eth1.157 - 10.10.10.45, eth2.172 - 10.10.50.45 ), running web browser to connect to Java Servers

First

***********************************************************
Update /etc/neutron/plugins/ml2/ml2_conf.ini
***********************************************************

[root@ip-192-169-142-127 ml2(keystone_demo)]# cat ml2_conf.ini
[ml2]
type_drivers = flat,vlan,vxlan
tenant_network_types = vlan,vxlan
mechanism_drivers =openvswitch
path_mtu = 0
[ml2_type_flat]
[ml2_type_vlan]
network_vlan_ranges =physnet1:100:200,vlan157:157:157,vlan172:172:172,physnet4
[ml2_type_gre]
[ml2_type_vxlan]
vni_ranges =10:100
vxlan_group =224.0.0.1
[ml2_type_geneve]
[securitygroup]
enable_security_group = True

**************
Then
**************

# openstack-service restart neutron

***************************************************
Invoke external network provider
***************************************************

[root@ip-192-169-142-127 ~(keystone_admin]#neutron net-create vlan157 --shared --provider:network_type vlan --provider:segmentation_id 157 --provider:physical_network vlan157 --router:external

[root@ip-192-169-142-127 ~(keystone_admin]# neutron subnet-create --name sub-vlan157 --gateway 10.10.10.1  --allocation-pool start=10.10.10.100,end=10.10.10.200 vlan157 10.10.10.0/24

***********************************************
Create second external vlan network
***********************************************

[root@ip-192-169-142-127 ~(keystone_admin]# neutron net-create vlan172 --shared --provider:network_type vlan --provider:segmentation_id 172 --provider:physical_network vlan172  --router:external

[root@ip-192-169-142-127 ~(keystone_admin]# neutron subnet-create --name sub-vlan172 --gateway 10.10.50.1 --allocation-pool start=10.10.50.100,end=10.10.50.200 vlan172 10.10.50.0/24

*************************************
Creating third flat network
*************************************

# neutron net-create external4 -- --router:external  \
  --provider:network_type=flat \
  --provider:physical_network=physnet4

# neutron subnet-create --disable-dhcp external4 192.179.143.0/24


[root@ip-192-169-142-127 ~(keystone_admin)]# neutron net-show vlan157
+---------------------------+--------------------------------------+
| Field                     | Value                                |
+---------------------------+--------------------------------------+
| admin_state_up            | True                                 |
| availability_zone_hints   |                                      |
| availability_zones        | nova                                 |
| created_at                | 2016-05-05T11:04:57                  |
| description               |                                      |
| id                        | 98116982-6553-4b7e-920c-0284a7200916 |
| ipv4_address_scope        |                                      |
| ipv6_address_scope        |                                      |
| is_default                | False                                |
| mtu                       | 1500                                 |
| name                      | vlan157                              |
| provider:network_type     | vlan                                 |
| provider:physical_network | vlan157                              |
| provider:segmentation_id  | 157                                  |
| router:external           | True                                 |
| shared                    | True                                 |
| status                    | ACTIVE                               |
| subnets                   | d50fddd2-46e7-4c67-8ab5-97e952bc11c9 |
| tags                      |                                      |
| tenant_id                 | 5d0e67d2fe7a403180fe77232b0cdcd5     |
| updated_at                | 2016-05-05T11:04:57                  |
+---------------------------+--------------------------------------+

[root@ip-192-169-142-127 ~(keystone_admin)]# neutron subnet-show sub-vlan157
+-------------------+--------------------------------------------------+
| Field             | Value                                            |
+-------------------+--------------------------------------------------+
| allocation_pools  | {"start": "10.10.10.100", "end": "10.10.10.200"} |
| cidr              | 10.10.10.0/24                                    |
| created_at        | 2016-05-05T11:05:27                              |
| description       |                                                  |
| dns_nameservers   |                                                  |
| enable_dhcp       | True                                             |
| gateway_ip        | 10.10.10.1                                       |
| host_routes       |                                                  |
| id                | d50fddd2-46e7-4c67-8ab5-97e952bc11c9             |
| ip_version        | 4                                                |
| ipv6_address_mode |                                                  |
| ipv6_ra_mode      |                                                  |
| name              | sub-vlan157                                      |
| network_id        | 98116982-6553-4b7e-920c-0284a7200916             |
| subnetpool_id     |                                                  |
| tenant_id         | 5d0e67d2fe7a403180fe77232b0cdcd5                 |
| updated_at        | 2016-05-05T11:05:27                              |
+-------------------+--------------------------------------------------+

[root@ip-192-169-142-127 ~(keystone_admin)]# neutron net-show vlan172
+---------------------------+--------------------------------------+
| Field                     | Value                                |
+---------------------------+--------------------------------------+
| admin_state_up            | True                                 |
| availability_zone_hints   |                                      |
| availability_zones        | nova                                 |
| created_at                | 2016-05-05T11:05:46                  |
| description               |                                      |
| id                        | 6fc89f42-cb85-4cdb-be5f-4d1768b05e14 |
| ipv4_address_scope        |                                      |
| ipv6_address_scope        |                                      |
| is_default                | False                                |
| mtu                       | 1500                                 |
| name                      | vlan172                              |
| provider:network_type     | vlan                                 |
| provider:physical_network | vlan172                              |
| provider:segmentation_id  | 172                                  |
| router:external           | True                                 |
| shared                    | True                                 |
| status                    | ACTIVE                               |
| subnets                   | 2d4f907b-1f80-451a-a663-b87bbd683d58 |
| tags                      |                                      |
| tenant_id                 | 5d0e67d2fe7a403180fe77232b0cdcd5     |
| updated_at                | 2016-05-05T11:05:46                  |
+---------------------------+--------------------------------------+

[root@ip-192-169-142-127 ~(keystone_admin)]# neutron subnet-show sub-vlan172
+-------------------+--------------------------------------------------+
| Field             | Value                                            |
+-------------------+--------------------------------------------------+
| allocation_pools  | {"start": "10.10.50.100", "end": "10.10.50.200"} |
| cidr              | 10.10.50.0/24                                    |
| created_at        | 2016-05-05T11:10:18                              |
| description       |                                                  |
| dns_nameservers   |                                                  |
| enable_dhcp       | True                                             |
| gateway_ip        | 10.10.50.1                                       |
| host_routes       |                                                  |
| id                | 2d4f907b-1f80-451a-a663-b87bbd683d58             |
| ip_version        | 4                                                |
| ipv6_address_mode |                                                  |
| ipv6_ra_mode      |                                                  |
| name              | sub-vlan172                                      |
| network_id        | 6fc89f42-cb85-4cdb-be5f-4d1768b05e14             |
| subnetpool_id     |                                                  |
| tenant_id         | 5d0e67d2fe7a403180fe77232b0cdcd5                 |
| updated_at        | 2016-05-05T11:10:18                              |
+-------------------+--------------------------------------------------+

Enable EPEL 7 to install vconfig ( or use ip CLI )

***************************************************
Next Step - external bridges setup on Controller
***************************************************

# modprobe 8021q
# ovs-vsctl add-br br-vlan
# ovs-vsctl add-port br-vlan eth2
# vconfig add br-vlan 157

# ovs-vsctl add-br br-vlan2
# ovs-vsctl add-port br-vlan2 eth3
# vconfig add br-vlan2 172

**********************************
External flat network
**********************************

# ovs-vsctl add-br br-eth4
# ovs-vsctl add-port  br-eth4  eth4


****************************************************
Update Neutron OVS configuration files
****************************************************
Start with the following comment in l3_agent.ini:
# When external_network_bridge is set, each L3 agent can be associated
# with no more than one external network. This value should be set to the UUID
# of that external network. To allow L3 agent support multiple external
# networks, both the external_network_bridge and gateway_external_network_id
# must be left empty.
******************************
Update l3_agent.ini file
******************************
external_network_bridge =
gateway_external_network_id =

******************************************************
/etc/neutron/plugins/ml2/openvswitch_agent.ini
******************************************************
bridge_mappings = physnet1:br-eth1,vlan157:br-vlan,vlan172:br-vlan2,physnet4:br-eth4

*************************************
Update Neutron Configuration
*************************************

# openstack-service restart neutron

************************************************
Set up config persistent between reboots
************************************************

[root@ip-192-169-142-127 network-scripts(keystone_admin)]# cat ifcfg-eth2
DEVICE="eth2"
ONBOOT=yes
OVS_BRIDGE=br-vlan
TYPE=OVSPort
DEVICETYPE="ovs"

[root@ip-192-169-142-127 network-scripts(keystone_admin)]# cat ifcfg-eth3
DEVICE="eth3"
ONBOOT=yes
OVS_BRIDGE=br-vlan2
TYPE=OVSPort
DEVICETYPE="ovs"

[root@ip-192-169-142-127 network-scripts(keystone_admin)]# cat ifcfg-br-vlan
DEVICE=br-vlan
BOOTPROTO=none
ONBOOT=yes
TYPE=OVSBridge
DEVICETYPE="ovs"

[root@ip-192-169-142-127 network-scripts(keystone_admin)]# cat ifcfg-br-vlan2
DEVICE=br-vlan2
BOOTPROTO=none
ONBOOT=yes
TYPE=OVSBridge
DEVICETYPE="ovs"

[root@ip-192-169-142-127 network-scripts(keystone_admin)]# cat ifcfg-br-vlan.157
BOOTPROTO="none"
DEVICE="br-vlan.157"
ONBOOT="yes"
IPADDR="10.10.10.150"
PREFIX="24"
GATEWAY="10.10.10.1"
DNS1="83.221.202.254"
VLAN=yes
NOZEROCONF=yes
USERCTL=no

[root@ip-192-169-142-127 network-scripts(keystone_admin)]# cat ifcfg-br-vlan2.172
BOOTPROTO="none"
DEVICE="br-vlan2.172"
ONBOOT="yes"
IPADDR="10.10.50.150"
PREFIX="24"
GATEWAY="10.10.50.1"
DNS1="83.221.202.254"
VLAN=yes
NOZEROCONF=yes

***************************
Then run script
***************************
#!/bin/bash -x
chkconfig network on
systemctl stop NetworkManager
systemctl disable NetworkManager
service network restart

# openstack-service restart neutron

[root@ip-192-169-142-127 ~(keystone_admin)]#  ip -details link show dev br-vlan.157
34: br-vlan.157@br-vlan: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP mode DEFAULT
    link/ether ba:bb:33:85:aa:49 brd ff:ff:ff:ff:ff:ff promiscuity 0
    vlan protocol 802.1Q id 157 <REORDER_HDR> addrgenmode eui64

[root@ip-192-169-142-127 ~(keystone_admin)]#  ip -details link show dev br-vlan2.172
33: br-vlan2.172@br-vlan2: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP mode DEFAULT
    link/ether 0e:e7:2d:26:c3:4a brd ff:ff:ff:ff:ff:ff promiscuity 0
    vlan protocol 802.1Q id 172 <REORDER_HDR> addrgenmode eui64

[root@ip-192-169-142-127 ~(keystone_admin)]# ip route
default via 10.10.10.1 dev br-vlan.157
10.10.10.0/24 dev br-vlan.157  proto kernel  scope link  src 10.10.10.150
10.10.50.0/24 dev br-vlan2.172  proto kernel  scope link  src 10.10.50.150
169.254.0.0/16 dev eth0  scope link  metric 1002
169.254.0.0/16 dev eth1  scope link  metric 1003
169.254.0.0/16 dev eth2  scope link  metric 1004
169.254.0.0/16 dev eth3  scope link  metric 1005
169.254.0.0/16 dev eth4  scope link  metric 1006
169.254.0.0/16 dev br-vlan  scope link  metric 1009
169.254.0.0/16 dev br-ex  scope link  metric 1010
169.254.0.0/16 dev br-vlan2  scope link  metric 1012
192.168.122.0/24 dev virbr0  proto kernel  scope link  src 192.168.122.1
192.169.142.0/24 dev br-ex  proto kernel  scope link  src 192.169.142.127

***************************
Controller/Network
***************************
[root@ip-192-169-142-127 ~(keystone_admin)]# ovs-vsctl show
d12e6a7a-f589-42cd-91b3-96156ad9ed59
    Bridge br-int
        fail_mode: secure
        Port "tap114497da-9f"
            tag: 1
            Interface "tap114497da-9f"
                type: internal
        Port "tap390b9bc5-b9"
            tag: 5
            Interface "tap390b9bc5-b9"
                type: internal
        Port "int-br-vlan2"
            Interface "int-br-vlan2"
                type: patch
                options: {peer="phy-br-vlan2"}
        Port "tap4b0c52b8-90"
            tag: 3
            Interface "tap4b0c52b8-90"
                type: internal
        Port "qr-795380c4-1d"
            tag: 2
            Interface "qr-795380c4-1d"
                type: internal
        Port "qg-b856b873-d0"
            tag: 3
            Interface "qg-b856b873-d0"
                type: internal
        Port "tap119f2a5f-2e"
            tag: 4
            Interface "tap119f2a5f-2e"
                type: internal
        Port int-br-vlan
            Interface int-br-vlan
                type: patch
                options: {peer=phy-br-vlan}
        Port "qr-2e2d2e81-14"
            tag: 1
            Interface "qr-2e2d2e81-14"
                type: internal
        Port "qg-234c2d9c-0a"
            tag: 4
            Interface "qg-234c2d9c-0a"
                type: internal
        Port "qr-41a1a0fa-ec"
            tag: 5
            Interface "qr-41a1a0fa-ec"
                type: internal
        Port br-int
            Interface br-int
                type: internal
        Port "qg-5c7b2d0a-1b"
            tag: 6
            Interface "qg-5c7b2d0a-1b"
                type: internal
        Port "int-br-eth4"
            Interface "int-br-eth4"
                type: patch
                options: {peer="phy-br-eth4"}
        Port "int-br-eth1"
            Interface "int-br-eth1"
                type: patch
                options: {peer="phy-br-eth1"}
        Port "tap936bd80d-26"
            tag: 2
            Interface "tap936bd80d-26"
                type: internal
    Bridge "br-vlan2"   <===external vlan172 network
        Port "eth3"
            Interface "eth3"
        Port "phy-br-vlan2"
            Interface "phy-br-vlan2"
                type: patch
                options: {peer="int-br-vlan2"}
        Port "br-vlan2"
            Interface "br-vlan2"
                type: internal
     Bridge "br-eth4"    <===external flat network
        Port "eth4"
            Interface "eth4"
        Port "phy-br-eth4"
            Interface "phy-br-eth4"
                type: patch
                options: {peer="int-br-eth4"}
        Port "br-eth4"
            Interface "br-eth4"
                type: internal
    Bridge br-ex
        Port br-ex
            Interface br-ex
                type: internal
        Port "eth0"
            Interface "eth0"
    Bridge "br-eth1"        <=== internal vlan enabled vm/data network
        Port "phy-br-eth1"
            Interface "phy-br-eth1"
                type: patch
                options: {peer="int-br-eth1"}
        Port "eth1"
            Interface "eth1"
        Port "br-eth1"
            Interface "br-eth1"
                type: internal
    Bridge br-vlan    <===external vlan157 network
        Port br-vlan
            Interface br-vlan
                type: internal
        Port "eth2"
            Interface "eth2"
        Port phy-br-vlan
            Interface phy-br-vlan
                type: patch
                options: {peer=int-br-vlan}
    ovs_version: "2.4.0"
[root@ip-192-169-142-127 ~(keystone_admin)]# ifconfig
br-ex: flags=4163  mtu 1500
        inet 192.169.142.127  netmask 255.255.255.0  broadcast 192.169.142.255
        inet6 fe80::3058:e2ff:fe5c:f64c  prefixlen 64  scopeid 0x20
        ether 32:58:e2:5c:f6:4c  txqueuelen 0  (Ethernet)
        RX packets 54754  bytes 12112793 (11.5 MiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 48647  bytes 15788730 (15.0 MiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

br-vlan: flags=4163  mtu 1500
        inet6 fe80::2054:9fff:feb5:b645  prefixlen 64  scopeid 0x20
        ether 22:54:9f:b5:b6:45  txqueuelen 0  (Ethernet)
        RX packets 51  bytes 6647 (6.4 KiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 298  bytes 16763 (16.3 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

br-vlan2: flags=4163  mtu 1500
        inet6 fe80::149a:c9ff:fe29:2240  prefixlen 64  scopeid 0x20
        ether 16:9a:c9:29:22:40  txqueuelen 0  (Ethernet)
        RX packets 497  bytes 24405 (23.8 KiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 31  bytes 4481 (4.3 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

br-vlan.157: flags=4163  mtu 1500
        inet 10.10.10.150  netmask 255.255.255.0  broadcast 10.10.10.255
        inet6 fe80::2054:9fff:feb5:b645  prefixlen 64  scopeid 0x20
        ether 22:54:9f:b5:b6:45  txqueuelen 0  (Ethernet)
        RX packets 34  bytes 4667 (4.5 KiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 290  bytes 14955 (14.6 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

br-vlan2.172: flags=4163  mtu 1500
        inet 10.10.50.150  netmask 255.255.255.0  broadcast 10.10.50.255
        inet6 fe80::149a:c9ff:fe29:2240  prefixlen 64  scopeid 0x20
        ether 16:9a:c9:29:22:40  txqueuelen 0  (Ethernet)
        RX packets 480  bytes 16181 (15.8 KiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 23  bytes 3741 (3.6 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

eth0: flags=4163  mtu 1500
        inet6 fe80::5054:ff:fe82:e40e  prefixlen 64  scopeid 0x20
        ether 52:54:00:82:e4:0e  txqueuelen 1000  (Ethernet)
        RX packets 56233  bytes 12189701 (11.6 MiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 48639  bytes 15786905 (15.0 MiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

eth1: flags=4163  mtu 1500
        inet6 fe80::5054:ff:feb2:82c  prefixlen 64  scopeid 0x20
        ether 52:54:00:b2:08:2c  txqueuelen 1000  (Ethernet)
        RX packets 4327  bytes 2918115 (2.7 MiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 1882  bytes 6415333 (6.1 MiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

eth2: flags=4163  mtu 1500
        inet6 fe80::5054:ff:fec9:cdcf  prefixlen 64  scopeid 0x20
        ether 52:54:00:c9:cd:cf  txqueuelen 1000  (Ethernet)
        RX packets 3334  bytes 6491253 (6.1 MiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 3064  bytes 2816873 (2.6 MiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

eth3: flags=4163  mtu 1500
        inet6 fe80::5054:ff:fe48:266f  prefixlen 64  scopeid 0x20
        ether 52:54:00:48:26:6f  txqueuelen 1000  (Ethernet)
        RX packets 2027  bytes 108290 (105.7 KiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 88  bytes 43478 (42.4 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

eth4: flags=4163  mtu 1500
        inet6 fe80::5054:ff:fe92:f712  prefixlen 64  scopeid 0x20
        ether 52:54:00:92:f7:12  txqueuelen 1000  (Ethernet)
        RX packets 1489  bytes 77816 (75.9 KiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 9  bytes 718 (718.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

lo: flags=73  mtu 65536
        inet 127.0.0.1  netmask 255.0.0.0
        inet6 ::1  prefixlen 128  scopeid 0x10
        loop  txqueuelen 0  (Local Loopback)
        RX packets 422071  bytes 134700542 (128.4 MiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 422071  bytes 134700542 (128.4 MiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

virbr0: flags=4099  mtu 1500
        inet 192.168.122.1  netmask 255.255.255.0  broadcast 192.168.122.255
        ether 52:54:00:e9:36:be  txqueuelen 0  (Ethernet)
        RX packets 0  bytes 0 (0.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 0  bytes 0 (0.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0






******************************************************************************************
Verification VLAN connectivity from WKS (VM) having eth1.157 && eth2.172 to mentioned bellow Java Servers running on Compute Node 192.169.142.137 as Nova-Docker Containers (instances)  with floating ips on vlan157 and  vlan172 correspondently
******************************************************************************************
Network configuration on WKS

[root@VlanConnect ~]# ifconfig
eth0: flags=4163  mtu 1500
        inet 192.169.142.45  netmask 255.255.255.0  broadcast 192.169.142.255
        inet6 fe80::5054:ff:fef5:a7eb  prefixlen 64  scopeid 0x20
        ether 52:54:00:f5:a7:eb  txqueuelen 1000  (Ethernet)
        RX packets 3358  bytes 178671 (174.4 KiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 22  bytes 3676 (3.5 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

eth1: flags=4163  mtu 1500
        inet6 fe80::5054:ff:fe2e:716c  prefixlen 64  scopeid 0x20
        ether 52:54:00:2e:71:6c  txqueuelen 1000  (Ethernet)
        RX packets 5154  bytes 1994070 (1.9 MiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 1157  bytes 153055 (149.4 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

eth2: flags=4163  mtu 1500
        inet6 fe80::5054:ff:fe62:5abb  prefixlen 64  scopeid 0x20
        ether 52:54:00:62:5a:bb  txqueuelen 1000  (Ethernet)
        RX packets 3384  bytes 213816 (208.8 KiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 654  bytes 36212 (35.3 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

eth1.157: flags=4163  mtu 1500
        inet 10.10.10.45  netmask 255.255.255.0  broadcast 10.10.10.255
        inet6 fe80::5054:ff:fe2e:716c  prefixlen 64  scopeid 0x20
        ether 52:54:00:2e:71:6c  txqueuelen 0  (Ethernet)
        RX packets 1823  bytes 1786566 (1.7 MiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 1151  bytes 147974 (144.5 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

eth2.172: flags=4163  mtu 1500
        inet 10.10.50.45  netmask 255.255.255.0  broadcast 10.10.50.255
        inet6 fe80::5054:ff:fe62:5abb  prefixlen 64  scopeid 0x20
        ether 52:54:00:62:5a:bb  txqueuelen 0  (Ethernet)
        RX packets 52  bytes 38138 (37.2 KiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 647  bytes 33022 (32.2 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0
lo: flags=73  mtu 65536
        inet 127.0.0.1  netmask 255.0.0.0
        inet6 ::1  prefixlen 128  scopeid 0x10
        loop  txqueuelen 0  (Local Loopback)
        RX packets 590  bytes 62280 (60.8 KiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 590  bytes 62280 (60.8 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

virbr0: flags=4099  mtu 1500
        inet 192.168.122.1  netmask 255.255.255.0  broadcast 192.168.122.255
        ether 52:54:00:13:11:69  txqueuelen 0  (Ethernet)
        RX packets 0  bytes 0 (0.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 0  bytes 0 (0.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0
[root@VlanConnect ~]# ip -details link show dev eth1.157
5: eth1.157@eth1: mtu 1500 qdisc noqueue state UP mode DEFAULT
    link/ether 52:54:00:2e:71:6c brd ff:ff:ff:ff:ff:ff promiscuity 0
    vlan protocol 802.1Q id 157 addrgenmode eui64

[root@VlanConnect ~]# ip -details link show dev eth2.172
6: eth2.172@eth2: mtu 1500 qdisc noqueue state UP mode DEFAULT
    link/ether 52:54:00:62:5a:bb brd ff:ff:ff:ff:ff:ff promiscuity 0
    vlan protocol 802.1Q id 172 addrgenmode eui64
********************************************************************************
Attempt to launch browser to GlassFish 4.X and Tomcat 7.0 consoles
********************************************************************************

Nova-Docker instance derbyGlassfish01 on vlan157 (10.10.10.105:4848)
Nova-Docker instance  Tomcat  on vlan172  (10.10.50.105:8080)




Posted by at
Subscribe to: Posts (Atom)
