Xen Virtualization on Linux and Solaris: RDO Mitaka && several external networks VLAN provider setup

Post bellow is addressing the question when Controller/Network RDO Mitaka Node has to have external networks of VLAN type with predefined vlan tags. Straight forward packstack deployment doesn't allow to achieve desired network configuration. External network provider of vlan type appears to be required. In particular case, office networks 10.10.10.0/24 vlan tagged (157) ,10.10.50.0/24 vlan tagged (172) already exists when RDO install is running. If demo_provision was "y" , then delete router1 and created external network of VXLAN type

First
***********************************************************
Update /etc/neutron/plugins/ml2/ml2_conf.ini
***********************************************************
[root@ip-192-169-142-127 ml2(keystone_demo)]# cat ml2_conf.ini
[ml2]
type_drivers = flat,vlan,vxlan
tenant_network_types = vlan,vxlan
mechanism_drivers =openvswitch
path_mtu = 0
[ml2_type_flat]
[ml2_type_vlan]
network_vlan_ranges = vlan157:157:157,vlan172:172:172
[ml2_type_gre]
[ml2_type_vxlan]
vni_ranges =10:100
vxlan_group =224.0.0.1
[ml2_type_geneve]
[securitygroup]
enable_security_group = True

**************
Then
**************

# openstack-service restart neutron

***************************************************
Invoke external network provider
***************************************************

[root@ip-192-169-142-127 ~(keystone_admin]#neutron net-create vlan157 --shared --provider:network_type vlan --provider:segmentation_id 157 --provider:physical_network vlan157 --router:external

[root@ip-192-169-142-127 ~(keystone_admin]# neutron subnet-create --name sub-vlan157 --gateway 10.10.10.1 --allocation-pool start=10.10.10.100,end=10.10.10.200 vlan157 10.10.10.0/24

***********************************************
Create second external network
***********************************************

[root@ip-192-169-142-127
 ~(keystone_admin]# neutron net-create vlan172 --shared
--provider:network_type vlan --provider:segmentation_id 172
--provider:physical_network vlan172  --router:external

[root@ip-192-169-142-127
 ~(keystone_admin]# neutron subnet-create --name sub-vlan172 --gateway
10.10.50.1 --allocation-pool start=10.10.50.100,end=10.10.50.200 vlan172
 10.10.50.0/24

***********************************************************
No need to update sub-net (vs [ 1 ]). No switch to "enable_isolataed_metadata=True"
Neutron L3 agent configuration results attaching qg- interfaces to br-int
***********************************************************

[root@ip-192-169-142-127 ~(keystone_admin)]# neutron net-show vlan157
+---------------------------+--------------------------------------+
| Field                     | Value                                |
+---------------------------+--------------------------------------+
| admin_state_up            | True                                 |
| availability_zone_hints   |                                      |
| availability_zones        | nova                                 |
| created_at                | 2016-05-05T11:04:57                  |
| description               |                                      |
| id                        | 98116982-6553-4b7e-920c-0284a7200916 |
| ipv4_address_scope        |                                      |
| ipv6_address_scope        |                                      |
| is_default                | False                                |
| mtu                       | 1500                                 |
| name                      | vlan157                              |
| provider:network_type     | vlan                                 |
| provider:physical_network | vlan157                              |
| provider:segmentation_id | 157                                  |
| router:external           | True                                 |
| shared                    | True                                 |
| status                    | ACTIVE                               |
| subnets                   | d50fddd2-46e7-4c67-8ab5-97e952bc11c9 |
| tags                      |                                      |
| tenant_id                 | 5d0e67d2fe7a403180fe77232b0cdcd5     |
| updated_at                | 2016-05-05T11:04:57                  |
+---------------------------+--------------------------------------+

[root@ip-192-169-142-127 ~(keystone_admin)]# neutron subnet-show sub-vlan157
+-------------------+--------------------------------------------------+
| Field             | Value                                            |
+-------------------+--------------------------------------------------+
| allocation_pools | {"start": "10.10.10.100", "end": "10.10.10.200"} |
| cidr              | 10.10.10.0/24                                    |
| created_at        | 2016-05-05T11:05:27                              |
| description       |                                                  |
| dns_nameservers   |                                                  |
| enable_dhcp       | True                                             |
| gateway_ip        | 10.10.10.1                                       |
| host_routes       |                                                  |
| id                | d50fddd2-46e7-4c67-8ab5-97e952bc11c9             |
| ip_version        | 4                                                |
| ipv6_address_mode |                                                  |
| ipv6_ra_mode      |                                                  |
| name              | sub-vlan157                                      |
| network_id        | 98116982-6553-4b7e-920c-0284a7200916             |
| subnetpool_id     |                                                  |
| tenant_id         | 5d0e67d2fe7a403180fe77232b0cdcd5                 |
| updated_at        | 2016-05-05T11:05:27                              |
+-------------------+--------------------------------------------------+

[root@ip-192-169-142-127 ~(keystone_admin)]# neutron net-show vlan172
+---------------------------+--------------------------------------+
| Field                     | Value                                |
+---------------------------+--------------------------------------+
| admin_state_up            | True                                 |
| availability_zone_hints   |                                      |
| availability_zones        | nova                                 |
| created_at                | 2016-05-05T11:05:46                  |
| description               |                                      |
| id                        | 6fc89f42-cb85-4cdb-be5f-4d1768b05e14 |
| ipv4_address_scope        |                                      |
| ipv6_address_scope        |                                      |
| is_default                | False                                |
| mtu                       | 1500                                 |
| name                      | vlan172                              |
| provider:network_type     | vlan                                 |
| provider:physical_network | vlan172                              |
| provider:segmentation_id | 172                                  |
| router:external           | True                                 |
| shared                    | True                                 |
| status                    | ACTIVE                               |
| subnets                   | 2d4f907b-1f80-451a-a663-b87bbd683d58 |
| tags                      |                                      |
| tenant_id                 | 5d0e67d2fe7a403180fe77232b0cdcd5     |
| updated_at                | 2016-05-05T11:05:46                  |
+---------------------------+--------------------------------------+

[root@ip-192-169-142-127 ~(keystone_admin)]# neutron subnet-show sub-vlan172
+-------------------+--------------------------------------------------+
| Field             | Value                                            |
+-------------------+--------------------------------------------------+
| allocation_pools | {"start": "10.10.50.100", "end": "10.10.50.200"} |
| cidr              | 10.10.50.0/24                                    |
| created_at        | 2016-05-05T11:10:18                              |
| description       |                                                  |
| dns_nameservers   |                                                  |
| enable_dhcp       | True                                             |
| gateway_ip        | 10.10.50.1                                       |
| host_routes       |                                                  |
| id                | 2d4f907b-1f80-451a-a663-b87bbd683d58             |
| ip_version        | 4                                                |
| ipv6_address_mode |                                                  |
| ipv6_ra_mode      |                                                  |
| name              | sub-vlan172                                      |
| network_id        | 6fc89f42-cb85-4cdb-be5f-4d1768b05e14             |
| subnetpool_id     |                                                  |
| tenant_id         | 5d0e67d2fe7a403180fe77232b0cdcd5                 |
| updated_at        | 2016-05-05T11:10:18                              |
+-------------------+--------------------------------------------------+

Enable EPEL 7 to install vconfig ( or use ip CLI )

**************
Next Step
**************

# modprobe 8021q
# ovs-vsctl add-br br-vlan
# ovs-vsctl add-port br-vlan eth2
# vconfig add br-vlan 157

# ovs-vsctl add-br br-vlan2
# ovs-vsctl add-port br-vlan2 eth3
# vconfig add br-vlan2 172

****************************************************
Update Neutron OVS configuration files
****************************************************
Start with the following comment in l3_agent.ini:

# When external_network_bridge is set, each L3 agent can be associated
# with no more than one external network. This value should be set to the UUID
# of that external network. To allow L3 agent support multiple external
# networks, both the external_network_bridge and gateway_external_network_id
# must be left empty.

******************************
Update l3_agent.ini file
******************************
external_network_bridge =
gateway_external_network_id =

**********************************************
/etc/neutron/plugins/ml2/openvswitch_agent.ini
**********************************************
bridge_mappings = vlan157:br-vlan,vlan172:br-vlan2

*************************************
Update Neutron Configuration
*************************************

# openstack-service restart neutron

*******************************************
Set up config persistent between reboots
*******************************************

[root@ip-192-169-142-127 network-scripts(keystone_admin)]# cat ifcfg-eth2
DEVICE="eth2"
ONBOOT=yes
OVS_BRIDGE=br-vlan
TYPE=OVSPort
DEVICETYPE="ovs"

[root@ip-192-169-142-127 network-scripts(keystone_admin)]# cat ifcfg-eth3
DEVICE="eth3"
ONBOOT=yes
OVS_BRIDGE=br-vlan2
TYPE=OVSPort
DEVICETYPE="ovs"

[root@ip-192-169-142-127 network-scripts(keystone_admin)]# cat ifcfg-br-vlan
DEVICE=br-vlan
BOOTPROTO=none
ONBOOT=yes
TYPE=OVSBridge
DEVICETYPE="ovs"

[root@ip-192-169-142-127 network-scripts(keystone_admin)]# cat ifcfg-br-vlan2
DEVICE=br-vlan2
BOOTPROTO=none
ONBOOT=yes
TYPE=OVSBridge
DEVICETYPE="ovs"

[root@ip-192-169-142-127 network-scripts(keystone_admin)]# cat ifcfg-br-vlan.157
BOOTPROTO="none"
DEVICE="br-vlan.157"
ONBOOT="yes"
IPADDR="10.10.10.150"
PREFIX="24"
GATEWAY="10.10.10.1"
DNS1="83.221.202.254"
VLAN=yes
NOZEROCONF=yes
USERCTL=no

[root@ip-192-169-142-127 network-scripts(keystone_admin)]# cat ifcfg-br-vlan2.172
BOOTPROTO="none"
DEVICE="br-vlan2.172"
ONBOOT="yes"
IPADDR="10.10.50.150"
PREFIX="24"
GATEWAY="10.10.50.1"
DNS1="83.221.202.254"
VLAN=yes
NOZEROCONF=yes

***************************
Then run script
***************************
#!/bin/bash -x
chkconfig network on
systemctl stop NetworkManager
systemctl disable NetworkManager
service network restart

# openstack-service restart neutron

[root@ip-192-169-142-127 ~(keystone_admin)]# ip -details link show dev br-vlan.157
34: br-vlan.157@br-vlan: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP mode DEFAULT
    link/ether ba:bb:33:85:aa:49 brd ff:ff:ff:ff:ff:ff promiscuity 0
    vlan protocol 802.1Q id 157 <REORDER_HDR> addrgenmode eui64

[root@ip-192-169-142-127 ~(keystone_admin)]# ip -details link show dev br-vlan2.172
33: br-vlan2.172@br-vlan2: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP mode DEFAULT
    link/ether 0e:e7:2d:26:c3:4a brd ff:ff:ff:ff:ff:ff promiscuity 0
    vlan protocol 802.1Q id 172 <REORDER_HDR> addrgenmode eui64

**************************************************
Routing table on Controller/Network node
**************************************************

[root@ip-192-169-142-127 ~]# ip route
default via 10.10.10.1 dev br-vlan.157
10.10.10.0/24 dev br-vlan.157 proto kernel scope link src 10.10.10.150
10.10.50.0/24 dev br-vlan2.172 proto kernel scope link src 10.10.50.150
12.0.0.0/24 dev eth1 proto kernel scope link src 12.0.0.127
169.254.0.0/16 dev eth0 scope link metric 1002
169.254.0.0/16 dev eth1 scope link metric 1003
169.254.0.0/16 dev eth2 scope link metric 1004
169.254.0.0/16 dev eth3 scope link metric 1005
169.254.0.0/16 dev br-vlan scope link metric 1007
169.254.0.0/16 dev br-ex scope link metric 1009
169.254.0.0/16 dev br-vlan2 scope link metric 1011
192.168.122.0/24 dev virbr0 proto kernel scope link src 192.168.122.1
192.169.142.0/24 dev br-ex proto kernel scope link src 192.169.142.127

**********************************************************
ovs-vsctl show on Controller/Network node
**********************************************************
[root@ip-192-169-142-127 ~]# ovs-vsctl show
0f97d38c-b77e-453f-a1fd-833cda206a7c
    Bridge br-tun
        fail_mode: secure
        Port "vxlan-0c000089"
            Interface "vxlan-0c000089"
                type: vxlan
                options: {df_default="true", in_key=flow, local_ip="12.0.0.127", out_key=flow, remote_ip="12.0.0.137"}
        Port br-tun
            Interface br-tun
                type: internal
        Port patch-int
            Interface patch-int
                type: patch
                options: {peer=patch-tun}
    Bridge "br-vlan2"
        Port "phy-br-vlan2"
            Interface "phy-br-vlan2"
                type: patch
                options: {peer="int-br-vlan2"}
        Port "br-vlan2"
            Interface "br-vlan2"
                type: internal
        Port "eth3"
            Interface "eth3"
    Bridge br-ex
        Port "eth0"
            Interface "eth0"
        Port br-ex
            Interface br-ex
                type: internal
        Port phy-br-ex
            Interface phy-br-ex
                type: patch
                options: {peer=int-br-ex}
    Bridge br-int
        fail_mode: secure
        Port "tap63390ae5-a0"
            tag: 5
            Interface "tap63390ae5-a0"
                type: internal
        Port "tapbd133fe7-d8"
            tag: 1
            Interface "tapbd133fe7-d8"
                type: internal
        Port "qr-c0d289d4-57"
            tag: 1
            Interface "qr-c0d289d4-57"
                type: internal
        Port "tapf72340ff-a7"
            tag: 4
            Interface "tapf72340ff-a7"
                type: internal
        Port "qr-f30f8169-82"
            tag: 6
            Interface "qr-f30f8169-82"
                type: internal
        Port int-br-vlan
            Interface int-br-vlan
                type: patch
                options: {peer=phy-br-vlan}
        Port "tapcc4e78d3-89"
            tag: 3
            Interface "tapcc4e78d3-89"
                type: internal
        Port "qg-5b3034ad-ec"
            tag: 2
            Interface "qg-5b3034ad-ec"
                type: internal
        Port "tapcf29aa08-22"
            tag: 6
            Interface "tapcf29aa08-22"
                type: internal
        Port "qg-52fdf7e8-ab"
            tag: 4
            Interface "qg-52fdf7e8-ab"
                type: internal
        Port br-int
            Interface br-int
                type: internal
        Port "int-br-vlan2"
            Interface "int-br-vlan2"
                type: patch
                options: {peer="phy-br-vlan2"}
        Port int-br-ex
            Interface int-br-ex
                type: patch
                options: {peer=phy-br-ex}
        Port "tap4b314afd-a5"
            tag: 2
            Interface "tap4b314afd-a5"
                type: internal
        Port patch-tun
            Interface patch-tun
                type: patch
                options: {peer=patch-int}
        Port "qr-9174bee9-2c"
            tag: 5
            Interface "qr-9174bee9-2c"
                type: internal
        Port "qg-d23a9d5f-04"
            tag: 3
            Interface "qg-d23a9d5f-04"
                type: internal
    Bridge br-vlan
        Port br-vlan
            Interface br-vlan
                type: internal
        Port phy-br-vlan
            Interface phy-br-vlan
                type: patch
                options: {peer=int-br-vlan}
        Port "eth2"
            Interface "eth2"
    ovs_version: "2.4.0"

[root@ip-192-169-142-127 ~]# ifconfig
br-ex: flags=4163 mtu 1500
        inet 192.169.142.127 netmask 255.255.255.0 broadcast 192.169.142.255
        inet6 fe80::6cc4:13ff:fe55:5d4a prefixlen 64 scopeid 0x20
        ether 6e:c4:13:55:5d:4a txqueuelen 0 (Ethernet)
        RX packets 11515 bytes 2649088 (2.5 MiB)
        RX errors 0 dropped 0 overruns 0 frame 0
        TX packets 10563 bytes 5443828 (5.1 MiB)
        TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

br-vlan: flags=4163 mtu 1500
        inet6 fe80::fc83:fff:febb:9a4d prefixlen 64 scopeid 0x20
        ether fe:83:0f:bb:9a:4d txqueuelen 0 (Ethernet)
        RX packets 11 bytes 710 (710.0 B)
        RX errors 0 dropped 0 overruns 0 frame 0
        TX packets 376 bytes 20351 (19.8 KiB)
        TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

br-vlan2: flags=4163 mtu 1500
        inet6 fe80::7c92:f0ff:fe4d:2745 prefixlen 64 scopeid 0x20
        ether 7e:92:f0:4d:27:45 txqueuelen 0 (Ethernet)
        RX packets 77 bytes 3618 (3.5 KiB)
        RX errors 0 dropped 0 overruns 0 frame 0
        TX packets 31 bytes 4577 (4.4 KiB)
        TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

br-vlan.157: flags=4163 mtu 1500
        inet 10.10.10.150 netmask 255.255.255.0 broadcast 10.10.10.255
        inet6 fe80::fc83:fff:febb:9a4d prefixlen 64 scopeid 0x20
        ether fe:83:0f:bb:9a:4d txqueuelen 0 (Ethernet)
        RX packets 11 bytes 556 (556.0 B)
        RX errors 0 dropped 0 overruns 0 frame 0
        TX packets 368 bytes 18231 (17.8 KiB)
        TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

br-vlan2.172: flags=4163 mtu 1500
        inet 10.10.50.150 netmask 255.255.255.0 broadcast 10.10.50.255
        inet6 fe80::7c92:f0ff:fe4d:2745 prefixlen 64 scopeid 0x20
        ether 7e:92:f0:4d:27:45 txqueuelen 0 (Ethernet)
        RX packets 70 bytes 2072 (2.0 KiB)
        RX errors 0 dropped 0 overruns 0 frame 0
        TX packets 23 bytes 3837 (3.7 KiB)
        TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
eth0: flags=4163 mtu 1500
        inet6 fe80::5054:ff:feaa:20a7 prefixlen 64 scopeid 0x20
        ether 52:54:00:aa:20:a7 txqueuelen 1000 (Ethernet)
        RX packets 12224 bytes 2686948 (2.5 MiB)
        RX errors 0 dropped 0 overruns 0 frame 0
        TX packets 10573 bytes 5443701 (5.1 MiB)
        TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

eth1: flags=4163 mtu 1500
        inet 12.0.0.127 netmask 255.255.255.0 broadcast 12.0.0.255
        inet6 fe80::5054:ff:fe5e:7704 prefixlen 64 scopeid 0x20
        ether 52:54:00:5e:77:04 txqueuelen 1000 (Ethernet)
        RX packets 1184 bytes 107197 (104.6 KiB)
        RX errors 0 dropped 0 overruns 0 frame 0
        TX packets 411 bytes 68703 (67.0 KiB)
        TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
eth2: flags=4163 mtu 1500
        inet6 fe80::5054:ff:fea3:8d2b prefixlen 64 scopeid 0x20
        ether 52:54:00:a3:8d:2b txqueuelen 1000 (Ethernet)
        RX packets 717 bytes 37478 (36.5 KiB)
        RX errors 0 dropped 0 overruns 0 frame 0
        TX packets 388 bytes 21199 (20.7 KiB)
        TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

eth3: flags=4163 mtu 1500
        inet6 fe80::5054:ff:feb2:6635 prefixlen 64 scopeid 0x20
        ether 52:54:00:b2:66:35 txqueuelen 1000 (Ethernet)
        RX packets 797 bytes 47773 (46.6 KiB)
        RX errors 0 dropped 0 overruns 0 frame 0
        TX packets 147 bytes 15510 (15.1 KiB)
        TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

lo: flags=73 mtu 65536
        inet 127.0.0.1 netmask 255.0.0.0
        inet6 ::1 prefixlen 128 scopeid 0x10
        loop txqueuelen 0 (Local Loopback)
        RX packets 262073 bytes 56439278 (53.8 MiB)
        RX errors 0 dropped 0 overruns 0 frame 0
        TX packets 262073 bytes 56439278 (53.8 MiB)
        TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

virbr0: flags=4099 mtu 1500
        inet 192.168.122.1 netmask 255.255.255.0 broadcast 192.168.122.255
        ether 52:54:00:7f:d6:bb txqueuelen 0 (Ethernet)
        RX packets 0 bytes 0 (0.0 B)
        RX errors 0 dropped 0 overruns 0 frame 0
        TX packets 0 bytes 0 (0.0 B)
        TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
**********************************************************************************
Now create another VM supposed to work as "remote" client with network configuration
**********************************************************************************
[root@ip-192-169-142-25 ~]# ifconfig
eth0: flags=4163 mtu 1500
        inet 192.169.142.25 netmask 255.255.255.0 broadcast 192.169.142.255
        inet6 fe80::5054:ff:fe53:8d61 prefixlen 64 scopeid 0x20
        ether 52:54:00:53:8d:61 txqueuelen 1000 (Ethernet)
        RX packets 2306 bytes 121390 (118.5 KiB)
        RX errors 0 dropped 0 overruns 0 frame 0
        TX packets 22 bytes 3667 (3.5 KiB)
        TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

eth1: flags=4163 mtu 1500
        inet6 fe80::5054:ff:fe51:c77b prefixlen 64 scopeid 0x20
        ether 52:54:00:51:c7:7b txqueuelen 1000 (Ethernet)
        RX packets 2356 bytes 123722 (120.8 KiB)
        RX errors 0 dropped 0 overruns 0 frame 0
        TX packets 30 bytes 4389 (4.2 KiB)
        TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

eth2: flags=4163 mtu 1500
        inet6 fe80::5054:ff:fe26:ab7 prefixlen 64 scopeid 0x20
        ether 52:54:00:26:0a:b7 txqueuelen 1000 (Ethernet)
        RX packets 2329 bytes 122504 (119.6 KiB)
        RX errors 0 dropped 0 overruns 0 frame 0
        TX packets 30 bytes 4389 (4.2 KiB)
        TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

eth1.157: flags=4163 mtu 1500
        inet 10.10.10.25 netmask 255.255.255.0 broadcast 10.10.10.255
        inet6 fe80::5054:ff:fe51:c77b prefixlen 64 scopeid 0x20
        ether 52:54:00:51:c7:7b txqueuelen 0 (Ethernet)
        RX packets 44 bytes 1288 (1.2 KiB)
        RX errors 0 dropped 0 overruns 0 frame 0
        TX packets 23 bytes 3719 (3.6 KiB)
        TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

eth2.172: flags=4163 mtu 1500
        inet 10.10.50.25 netmask 255.255.255.0 broadcast 10.10.50.255
        inet6 fe80::5054:ff:fe26:ab7 prefixlen 64 scopeid 0x20
        ether 52:54:00:26:0a:b7 txqueuelen 0 (Ethernet)
        RX packets 23 bytes 700 (700.0 B)
        RX errors 0 dropped 0 overruns 0 frame 0
        TX packets 23 bytes 3719 (3.6 KiB)
        TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

lo: flags=73 mtu 65536
        inet 127.0.0.1 netmask 255.0.0.0
        inet6 ::1 prefixlen 128 scopeid 0x10
        loop txqueuelen 0 (Local Loopback)
        RX packets 0 bytes 0 (0.0 B)
        RX errors 0 dropped 0 overruns 0 frame 0
        TX packets 0 bytes 0 (0.0 B)
        TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

virbr0: flags=4099 mtu 1500
        inet 192.168.122.1 netmask 255.255.255.0 broadcast 192.168.122.255
        ether 52:54:00:d2:be:fe txqueuelen 0 (Ethernet)
        RX packets 0 bytes 0 (0.0 B)
        RX errors 0 dropped 0 overruns 0 frame 0
        TX packets 0 bytes 0 (0.0 B)
        TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

[root@ip-192-169-142-25 ~]# ip -details link show dev eth1.157
5: eth1.157@eth1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP mode DEFAULT
    link/ether 52:54:00:51:c7:7b brd ff:ff:ff:ff:ff:ff promiscuity 0
    vlan protocol 802.1Q id 157 <REORDER_HDR> addrgenmode eui64

[root@ip-192-169-142-25 ~]# ip -details link show dev eth2.172
6: eth2.172@eth2: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP mode DEFAULT
    link/ether 52:54:00:26:0a:b7 brd ff:ff:ff:ff:ff:ff promiscuity 0
    vlan protocol 802.1Q id 172 <REORDER_HDR> addrgenmode eui64

**********************************

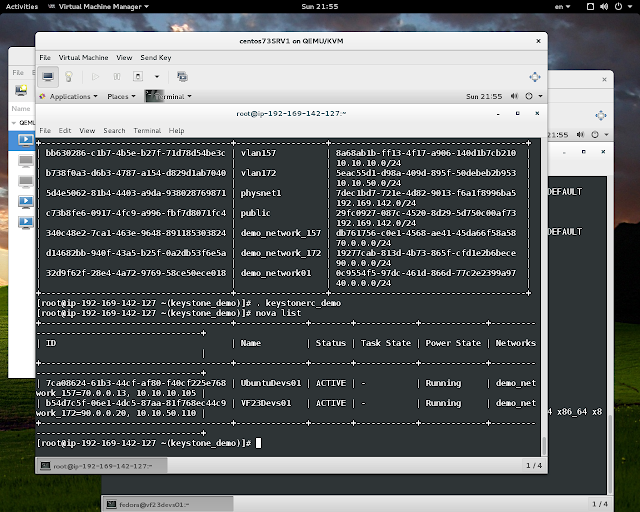

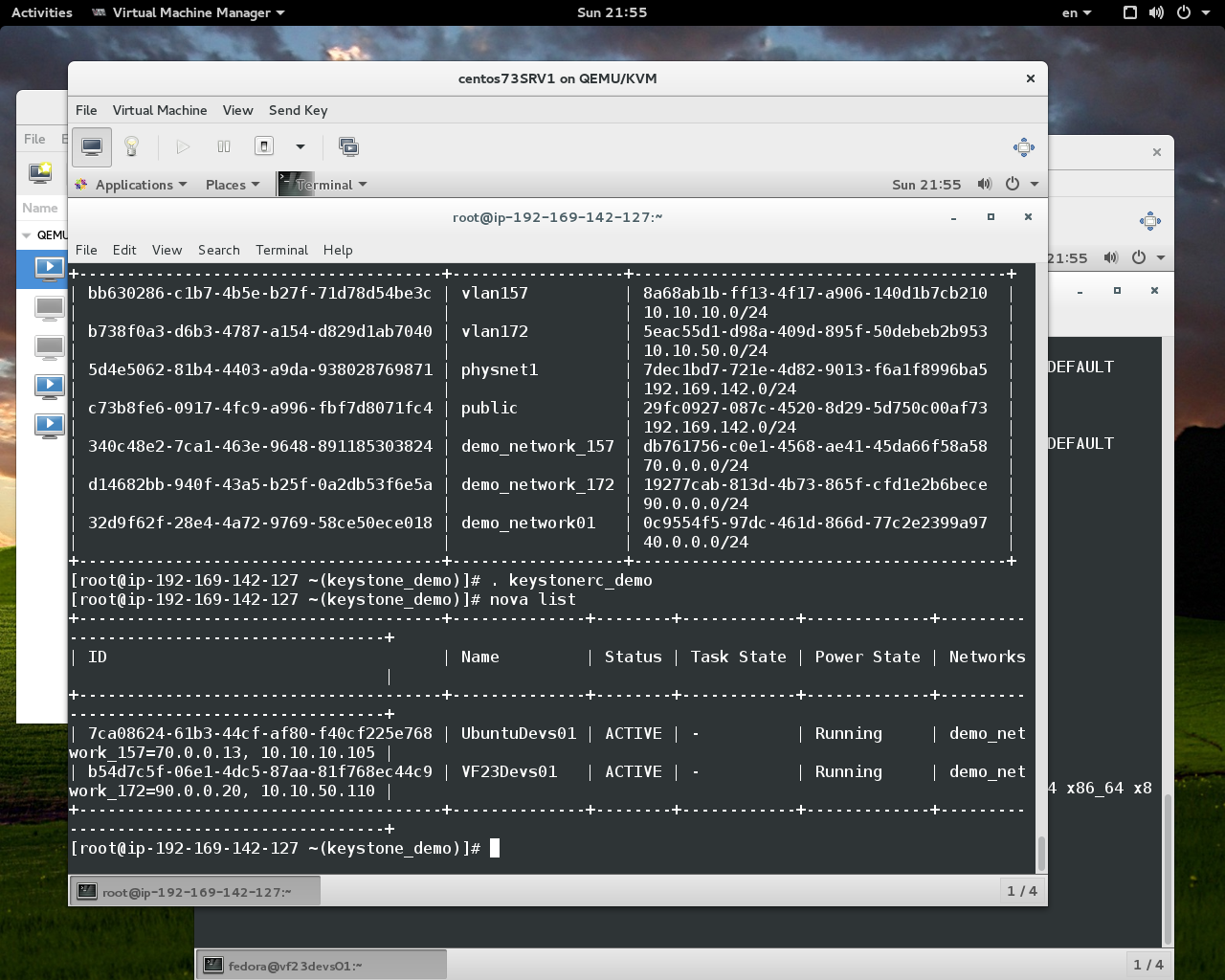

Network Topology
**********************************

***********************************************************************************
Verification VLAN connectivity from another VM having eth1.157 && eth2.172
***********************************************************************************

Connection via ssh from different VM (Host) via vlan172 external network
to VF23Devs01

   Status on Controller/Network Node

   # ip -details link show dev br-vlan.157
   # ip -details link show dev br-vlan.172

   has been run against vlan enabled OVS bridges providing connections
   to external vlan tagged networks vlan157 && vlan172

*********************************************************************
"Remote" connections from VM 192.169.142.25
*********************************************************************

[root@ip-192-169-142-25 ~]# ip -d link show dev eth1.157
5: eth1.157@eth1: mtu 1500 qdisc noqueue state UP mode DEFAULT
    link/ether 52:54:00:51:c7:7b brd ff:ff:ff:ff:ff:ff promiscuity 0
    vlan protocol 802.1Q id 157 addrgenmode eui64

[root@ip-192-169-142-25 ~]# ip -d link show dev eth2.172
6: eth2.172@eth2: mtu 1500 qdisc noqueue state UP mode DEFAULT
    link/ether 52:54:00:26:0a:b7 brd ff:ff:ff:ff:ff:ff promiscuity 0
    vlan protocol 802.1Q id 172 addrgenmode eui64

[root@ip-192-169-142-25 ~]# ssh -i oskeymitakav0509.pem ubuntu@10.10.10.105
Welcome to Ubuntu 16.04 LTS (GNU/Linux 4.4.0-21-generic x86_64)

* Documentation: https://help.ubuntu.com/

Get cloud support with Ubuntu Advantage Cloud Guest:
    http://www.ubuntu.com/business/services/cloud

0 packages can be updated.
0 updates are security updates.

Last login: Sun May 8 21:01:05 2016 from 10.10.10.25
ubuntu@ubuntudevs01:~$ uname -a
Linux ubuntudevs01 4.4.0-21-generic #37-Ubuntu SMP Mon Apr 18 18:33:37 UTC 2016 x86_64 x86_64 x86_64 GNU/Linux
ubuntu@ubuntudevs01:~$ logout
Connection to 10.10.10.105 closed.

[root@ip-192-169-142-25 ~]# ssh -i oskeymitakav0509.pem fedora@10.10.50.115
Last login: Sun May 8 21:00:10 2016 from 10.10.50.25
[fedora@vf23devs01 ~]$ uname -a
Linux vf23devs01.novalocal 4.2.3-300.fc23.x86_64 #1 SMP Mon Oct 5 15:42:54 UTC 2015 x86_64 x86_64 x86_64 GNU/Linux
[fedora@vf23devs01 ~]$ Connection to 10.10.50.115 closed.

*******************************************************************************

Running ovs-vsctl dump-flows run against br-int,br-vlan,br-vlan2

********************************************************************************

[root@ip-192-169-142-127 ~(keystone_admin)]# ovs-ofctl dump-flows br-int | grep NORMAL

cookie=0xbc49cba79c654568, duration=3728.585s, table=0, n_packets=304, n_bytes=22247, idle_age=1035, priority=3,in_port=9,dl_vlan=157 actions=mod_vlan_vid:2,NORMAL
cookie=0xbc49cba79c654568, duration=3728.568s, table=0, n_packets=847, n_bytes=63545, idle_age=1263, priority=3,in_port=10,dl_vlan=172 actions=mod_vlan_vid:3,NORMAL
cookie=0xbc49cba79c654568, duration=3785.491s, table=0, n_packets=17023, n_bytes=10656347, idle_age=0, priority=0 actions=NORMAL

[root@ip-192-169-142-127 ~(keystone_admin)]# ovs-ofctl dump-flows br-vlan | grep NORMAL
cookie=0x8bf063a20f266e3d, duration=3740.851s, table=0, n_packets=49, n_bytes=5876, idle_age=2477, priority=4,in_port=2,dl_vlan=2 actions=mod_vlan_vid:157,NORMAL
cookie=0x8bf063a20f266e3d, duration=3797.645s, table=0, n_packets=2256, n_bytes=124703, idle_age=0, priority=0 actions=NORMAL

[root@ip-192-169-142-127 ~(keystone_admin)]# ovs-ofctl dump-flows br-vlan2 | grep NORMAL
cookie=0x95be135a31e3e4d1, duration=3751.317s, table=0, n_packets=1683, n_bytes=130830, idle_age=0, priority=4,in_port=2,dl_vlan=3 actions=mod_vlan_vid:172,NORMAL
cookie=0x95be135a31e3e4d1, duration=3808.061s, table=0, n_packets=2763, n_bytes=163765, idle_age=1, priority=0 actions=NORMAL

****************************************************

Testing transmitting bridges

****************************************************

[root@ip-192-169-142-127 ~(keystone_admin)]# cat /proc/net/vlan/br-vlan.157

br-vlan.157 VID: 157    REORDER_HDR: 1 dev->priv_flags: 1
         total frames received           42
          total bytes received         4080
      Broadcast/Multicast Rcvd           21

      total frames transmitted          287
       total bytes transmitted        14829
Device: br-vlan
INGRESS priority mappings: 0:0 1:0 2:0 3:0 4:0 5:0 6:0 7:0
EGRESS priority mappings:

[root@ip-192-169-142-127 ~(keystone_admin)]# cat /proc/net/vlan/br-vlan2.172
br-vlan2.172 VID: 172    REORDER_HDR: 1 dev->priv_flags: 1
         total frames received         1978
          total bytes received        58288
      Broadcast/Multicast Rcvd           21

      total frames transmitted           23
       total bytes transmitted         3741
Device: br-vlan2
INGRESS priority mappings: 0:0 1:0 2:0 3:0 4:0 5:0 6:0 7:0
EGRESS priority mappings:

***************************************************************************************
Snapshots bellow done on VF23Devs01 VM attached to flat and vlan enabled 172
external networks. "MATE Desktop" installed via FIP belongs to flat network
( outbound connectivity to Internet ) . Aftewards VM switched to FIP belongs
vlan172 connected 10.10.150.45 having eth2.172.
***************************************************************************************

10.10.50.45

Xen Virtualization on Linux and Solaris

Friday, May 06, 2016

RDO Mitaka && several external networks VLAN provider setup

About Me

Blog Archive
