Why DVR come into concern ?
Refreshing in memory similar problem with Nova-Docker Driver (Kilo)
with which I had same kind of problems (VXLAN connection Controller <==> Compute) on F22 (OVS 2.4.0) when the same driver worked fine on CentOS 7.1 (OVS 2.3.1). I just guess that Nova-Docker driver has a problem with OVS 2.4.0 no matter of stable/kilo, stable/liberty, stable/mitaka branches been checked out for driver build.
I have to notice that issue is related specifically with ML2&OVS&VXLAN setup,
RDO Mitaka deployment ML2&OVS&VLAN works with Nova-Docker (stable/mitaka) with no problems.
I have not run ovs-ofctl dump-flows at br-tun bridges ant etc,
because even having proved malfunctinality I cannot file it to BZ.
Nova-Docker Driver is not packaged for RDO so it's upstream stuff,
Upstream won't consider issue which involves build driver from source
on RDO Mitaka (RC1).
Thus as quick and efficient workaround I suggest DVR deployment setup,
It will result South-North traffic to be forwarded right away host running Docker Hypervisor to Internet and vice/versa due to basic "fg" functionality ( outgoing interface of fip-namespace,residing on Compute node having L3 agent running in "dvr" agent_mode ).
**************************
Procedure in details
**************************
First install repositories for RDO Mitaka (the most recent build passed CI):-
# yum -y install yum-plugin-priorities
# cd /etc/yum.repos.d
# curl -O https://trunk.rdoproject.org/centos7-mitaka/delorean-deps.repo
# curl -O https://trunk.rdoproject.org/centos7-mitaka/current-passed-ci/delorean.repo
# yum -y install openstack-packstack (Controller only)
Now proceed as follows :-
1. Here is Answer file to deploy pre DVR Cluster
2. See pre-deployment actions to be undertaken on Controller/Storage Node
Before DVR set up change swift to glance back end ( swift is configured in answer-file as follows )
CONFIG_SWIFT_STORAGES=/dev/vdb1,/dev/vdc1,/dev/vdd1
CONFIG_SWIFT_STORAGE_ZONES=3
CONFIG_SWIFT_STORAGE_REPLICAS=3
CONFIG_SWIFT_STORAGE_FSTYPE=xfs
CONFIG_SWIFT_HASH=a55607bff10c4210
CONFIG_SWIFT_STORAGE_SIZE=10G
Up on set up completion on storage node :-
[root@ip-192-169-142-127 ~]# df -h
Filesystem Size Used Avail Use% Mounted on
/dev/mapper/centos-root 45G 5.3G 40G 12% /
devtmpfs 2.8G 0 2.8G 0% /dev
tmpfs 2.8G 204K 2.8G 1% /dev/shm
tmpfs 2.8G 25M 2.8G 1% /run
tmpfs 2.8G 0 2.8G 0% /sys/fs/cgroup
/dev/vdc1 10G 2.5G 7.5G 25% /srv/node/vdc1
/dev/vdb1 10G 2.5G 7.5G 25% /srv/node/vdb1
/dev/vdd1 10G 2.5G 7.5G 25% /srv/node/vdd1
/dev/vda1 497M 211M 286M 43% /boot
tmpfs 567M 4.0K 567M 1% /run/user/42
tmpfs 567M 8.0K 567M 1% /run/user/1000
****************************
Update glance-api.conf
****************************
[glance_store]
stores = swift
default_store = swift
swift_store_auth_address = http://192.169.142.127:5000/v2.0/
swift_store_user = services:glance
swift_store_key = f6a9398960534797
swift_store_create_container_on_put = True
os_region_name=RegionOne
# openstack-service restart glance
# keystone user-role-add --tenant_id=$UUID_SERVICES_TENANT \
--user=$UUID_GLANCE_USER --role=$UUID_ResellerAdmin_ROLE
Value f6a9398960534797 is corresponding CONFIG_GLANCE_KS_PW
in answer-file,i.e. keystone glance password for authentification
2. Convert cluster to DVR as advised in "RDO Liberty DVR Neutron workflow on CentOS 7.2"
Just one notice on RDO Mitaka on each compute node run
# ovs-vsctl add-br br-ex
# ovs-vsctl add-port br-ex eth0
Then configure
***********************************************************
On Controller (X=2) and Computes X=(3,4) update :-
***********************************************************
# cat ifcfg-br-ex
DEVICE="br-ex"
BOOTPROTO="static"
IPADDR="192.169.142.1(X)7"
NETMASK="255.255.255.0"
DNS1="83.221.202.254"
BROADCAST="192.169.142.255"
GATEWAY="192.169.142.1"
NM_CONTROLLED="no"
DEFROUTE="yes"
IPV4_FAILURE_FATAL="yes"
IPV6INIT=no
ONBOOT="yes"
TYPE="OVSIntPort"
OVS_BRIDGE=br-ex
DEVICETYPE="ovs"
# cat ifcfg-eth0
DEVICE="eth0"
ONBOOT="yes"
TYPE="OVSPort"
DEVICETYPE="ovs"
OVS_BRIDGE=br-ex
NM_CONTROLLED=no
IPV6INIT=no
***************************
Then run script
***************************
#!/bin/bash -x
chkconfig network on
systemctl stop NetworkManager
systemctl disable NetworkManager
service network restart
Reboot node.
**********************************************
Nova-Docker Setup on each Compute
**********************************************
# curl -sSL https://get.docker.com/ | sh
# usermod -aG docker nova ( seems not help to set 660 for docker.sock )
# systemctl start docker
# systemctl enable docker
# chmod 666 /var/run/docker.sock (add to /etc/rc.d/rc.local)
# easy_install pip
# git clone -b stable/mitaka https://github.com/openstack/nova-docker
*******************
Driver build
*******************
# cd nova-docker
# pip install -r requirements.txt
# python setup.py install
********************************************
Switch nova-compute to DockerDriver
********************************************
vi /etc/nova/nova.conf
compute_driver=novadocker.virt.docker.DockerDriver
******************************************************************
Next on Controller/Network Node and each Compute Node
******************************************************************
mkdir /etc/nova/rootwrap.d
vi /etc/nova/rootwrap.d/docker.filters
[Filters]
# nova/virt/docker/driver.py: 'ln', '-sf', '/var/run/netns/.*'
ln: CommandFilter, /bin/ln, root
**********************************************************
Nova Compute Service restart on Compute Nodes
**********************************************************
# systemctl restart openstack-nova-compute
***********************************************
Glance API Service restart on Controller
**********************************************
vi /etc/glance/glance-api.conf
container_formats=ami,ari,aki,bare,ovf,ova,docker
# systemctl restart openstack-glance-api
**************************************************
Network flow on Compute in a bit more details
**************************************************
When floating IP gets assigned to VM , what actually happens ( [1] ) :-
The same explanation may be found in ([4]) , the only style would not be in step by step manner, in particular it contains detailed description of reverse network flow and ARP Proxy functionality.
1.The fip- namespace is created on the local compute node
(if it does not already exist)
2.A new port rfp- gets created on the qrouter- namespace
(if it does not already exist)
3.The rfp port on the qrouter namespace is assigned the associated floating IP address
4.The fpr port on the fip namespace gets created and linked via point-to-point network to the rfp port of the qrouter namespace
5.The fip namespace gateway port fg- is assigned an additional address
from the public network range to set up ARP proxy point
6.The fg- is configured as a Proxy ARP
*********************
Flow itself ( [1] ):
*********************
1.The VM, initiating transmission, sends a packet via default gateway
and br-int forwards the traffic to the local DVR gateway port (qr-).
2.DVR routes the packet using the routing table to the rfp- port
3.The packet is applied NAT rule, replacing the source-IP of VM to
the assigned floating IP, and then it gets sent through the rfp- port,
which connects to the fip namespace via point-to-point network
169.254.31.28/31
4. The packet is received on the fpr- port in the fip namespace
and then routed outside through the fg- port
+--------------------------------------+----------------+--------+------------+-------------+-----------------------------------------+

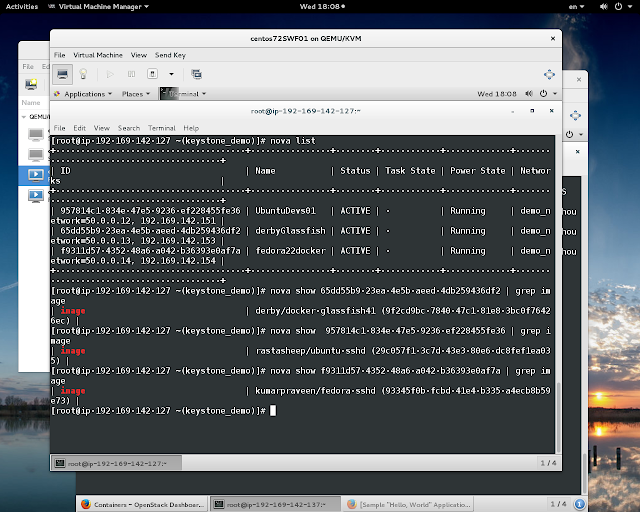

| ID | Name | Status | Task State | Power State | Networks |
+--------------------------------------+----------------+--------+------------+-------------+-----------------------------------------+
| 957814c1-834e-47e5-9236-ef228455fe36 | UbuntuDevs01 | ACTIVE | - | Running | demo_network=50.0.0.12, 192.169.142.151 |
| 65dd55b9-23ea-4e5b-aeed-4db259436df2 | derbyGlassfish | ACTIVE | - | Running | demo_network=50.0.0.13, 192.169.142.153 |
| f9311d57-4352-48a6-a042-b36393e0af7a | fedora22docker | ACTIVE | - | Running | demo_network=50.0.0.14, 192.169.142.154 |
+--------------------------------------+----------------+--------+------------+-------------+-----------------------------------------+
[root@ip-192-169-142-137 ~(keystone_demo)]# docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
336679f5bf7a kumarpraveen/fedora-sshd "/usr/bin/supervisord" About an hour ago Up About an hour nova-f9311d57-4352-48a6-a042-b36393e0af7a
8bb2ce01e671 derby/docker-glassfish41 "/sbin/my_init" 2 hours ago Up 2 hours nova-65dd55b9-23ea-4e5b-aeed-4db259436df2
fe5eb55a4c9d rastasheep/ubuntu-sshd "/usr/sbin/sshd -D" 3 hours ago Up 3 hours nova-957814c1-834e-47e5-9236-ef228455fe36
[root@ip-192-169-142-137 ~(keystone_demo)]# nova show f9311d57-4352-48a6-a042-b36393e0af7a | grep image
| image | kumarpraveen/fedora-sshd (93345f0b-fcbd-41e4-b335-a4ecb8b59e73) |
[root@ip-192-169-142-137 ~(keystone_demo)]# nova show 65dd55b9-23ea-4e5b-aeed-4db259436df2 | grep image
| image | derby/docker-glassfish41 (9f2cd9bc-7840-47c1-81e8-3bc0f76426ec) |
[root@ip-192-169-142-137 ~(keystone_demo)]# nova show 957814c1-834e-47e5-9236-ef228455fe36 | grep image
| image | rastasheep/ubuntu-sshd (29c057f1-3c7d-43e3-80e6-dc8fef1ea035) |
[root@ip-192-169-142-137 ~(keystone_demo)]# . keystonerc_glance
[root@ip-192-169-142-137 ~(keystone_glance)]# glance image-list
+--------------------------------------+--------------------------+
| ID | Name |
+--------------------------------------+--------------------------+
| 27551b28-6df7-4b0e-a0c8-322b416092c1 | cirros |
| 9f2cd9bc-7840-47c1-81e8-3bc0f76426ec | derby/docker-glassfish41 |
| 93345f0b-fcbd-41e4-b335-a4ecb8b59e73 | kumarpraveen/fedora-sshd |
| 29c057f1-3c7d-43e3-80e6-dc8fef1ea035 | rastasheep/ubuntu-sshd |
+--------------------------------------+--------------------------+
[root@ip-192-169-142-137 ~(keystone_glance)]# swift list glance
29c057f1-3c7d-43e3-80e6-dc8fef1ea035
29c057f1-3c7d-43e3-80e6-dc8fef1ea035-00001
29c057f1-3c7d-43e3-80e6-dc8fef1ea035-00002
93345f0b-fcbd-41e4-b335-a4ecb8b59e73
93345f0b-fcbd-41e4-b335-a4ecb8b59e73-00001
93345f0b-fcbd-41e4-b335-a4ecb8b59e73-00002
93345f0b-fcbd-41e4-b335-a4ecb8b59e73-00003
93345f0b-fcbd-41e4-b335-a4ecb8b59e73-00004
93345f0b-fcbd-41e4-b335-a4ecb8b59e73-00005
9f2cd9bc-7840-47c1-81e8-3bc0f76426ec
9f2cd9bc-7840-47c1-81e8-3bc0f76426ec-00001
9f2cd9bc-7840-47c1-81e8-3bc0f76426ec-00002
9f2cd9bc-7840-47c1-81e8-3bc0f76426ec-00003
9f2cd9bc-7840-47c1-81e8-3bc0f76426ec-00004
9f2cd9bc-7840-47c1-81e8-3bc0f76426ec-00005
9f2cd9bc-7840-47c1-81e8-3bc0f76426ec-00006
